Single Lane Arc Frame Full Height Turnstile , Pedestrian Barrier Gate Bi - Directional

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 100 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply AC 220V/ AC110V ± 10% Frame Material SS304/SS316
Transit Speed 20~30 Person Per Min Thickness Of Frame 1.2 Or 1.5mm
Arm Length 550mm(default) Unlock Time 0.2 S
Width Of Passage 600mm(default) Package Wooden Box
Control Voltage DC24V Surface Treatment Brushed
High Light

turnstiles full height

,

full height barriers

,

full height turnstile Anti following

Leave a Message
Product Description

CE Approved Single Lane Arc Full Body Height Turnstile With Automatic Access Control System



Basic Description

The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised

access control for office or building which realize intelligent pedestrian control and management. .

The impenetrable construction eliminates any un-authorized access to restricted areas.

To gain authorized passage through the turnstile, the user must present a valid card for the access control system.

Upon presentation of the valid card. The turnstile will unlock and allow the user to pass through the direction requested.

And the turnstile can also work with push button, fingerprint and face recognition access control system.

This full-height turnstiles designs with tailored stainless steel make its elegance-looking,durable and anti-oxidation .

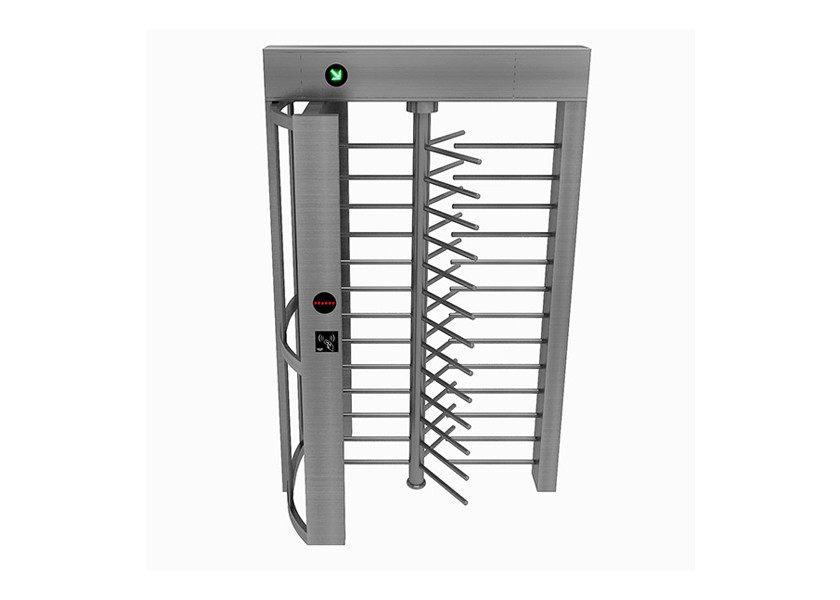

Product Photo



Single Lane Arc Frame Full Height Turnstile , Pedestrian Barrier Gate Bi - Directional 0

Single Lane Arc Frame Full Height Turnstile , Pedestrian Barrier Gate Bi - Directional 1



Product dimension

Single Lane Arc Frame Full Height Turnstile , Pedestrian Barrier Gate Bi - Directional 2



Functions & Features



1) Low noise mechanism core equipped, highly cost-performance

2) Operating efficiency, 1~2 seconds open & close

3) Self-checking and Alarm warning for maintainence

4) Resetting: System cancel authorized pass if passenger delayed pass

5) Anti-following : prevent illegal passing

6) Anti-clamp :The wings will stopped during in external block, the wings reset again after default delay

7) The rotary wings will be locked automatically if the person do not

8) Multi-passage for variety application demands

9) Programmable signal separate control : pass time,pass speed etc. parameter

10) Compatible with RFID card reader, fingerprint reader, facial recognition system (access controller needed)

11) Long-distance management through COMPUTER (Access controller needed)

12) Customize Options: LED display, Voice guide, Warning Lamps, Indicator Lights guide, Audible &Visible Alarm



Control & Interfaces optionals

1, Card readers

2, Metal detection

3, Electronic/LCD counters

4, Fail-open or fail-secure locking

5, Push-button and wireless remotes

6, Manual key override both directions

7, Indicator lights



Technical specification



Power supply
AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption
40W
Access device input voltage
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Max flow rate
25 to 30 person per minute
Arm length
550mm (default)
Lane width
600mm (default)
Working temperature
-20°C~60°C
Current
3A
Control circuit
DC24
Working humidity
0~95%RH
Arm Diameter
38mm



Workshop photo



Single Lane Arc Frame Full Height Turnstile , Pedestrian Barrier Gate Bi - Directional 3

Single Lane Arc Frame Full Height Turnstile , Pedestrian Barrier Gate Bi - Directional 4



Packing photo



Single Lane Arc Frame Full Height Turnstile , Pedestrian Barrier Gate Bi - Directional 5

Single Lane Arc Frame Full Height Turnstile , Pedestrian Barrier Gate Bi - Directional 6

Single Lane Arc Frame Full Height Turnstile , Pedestrian Barrier Gate Bi - Directional 7



How full height turnstile access control system works

Single Lane Arc Frame Full Height Turnstile , Pedestrian Barrier Gate Bi - Directional 8



Cases reference

Single Lane Arc Frame Full Height Turnstile , Pedestrian Barrier Gate Bi - Directional 9

Single Lane Arc Frame Full Height Turnstile , Pedestrian Barrier Gate Bi - Directional 10
