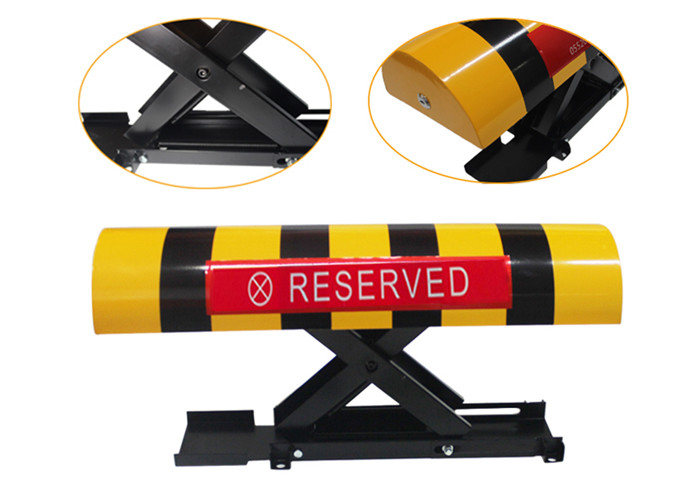

Vertical Lifting Parking Spot Lock Remote Control Parking Space Protector

  • Vertical Lifting Parking Spot Lock Remote Control Parking Space Protector
  • Vertical Lifting Parking Spot Lock Remote Control Parking Space Protector
  • Vertical Lifting Parking Spot Lock Remote Control Parking Space Protector
  • Vertical Lifting Parking Spot Lock Remote Control Parking Space Protector
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-BW-3
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 3-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 2mm Cold Rolling Steel Quiescent Current(mA) ≤0.85Ah
Running Time 5-6 Seconds Remote Distance ≤50m
Warranty 1 Year Up Height 320mm
Down Height 90mm Motor Voltage DC12V
Recharge Time 8 Hours
High Light

remote control parking lock

,

automatic parking lock
Leave a Message
Product Description

Easy Installation Vertical Lifting Remote Control Car Parking Space Protectors Lock



About product

PARKING LOCK is designed to provide parking for the general public, as well as for drivers
with special privileges and needs. These include spaces reserved for monthly, annual renters,
owners, renters of condominium, co-op parking spaces, disabled drivers and company executives
and visitors. In dedicated parking garages, access to the entire garage or to a designated area
within it can be restricted using a single access controlled barrier. In a mixed-use application,
however, access needs to be controlled on an individual parking space basis



Appication

Remote control parking lock has been installed in the following types of applications:

Office buildings
Residence Condominiums
Hospitals
Airports
Shopping centers
Stores
Handicapped Parking
Individual User



Product Specs

Voltage of motor
12Volt DC
Battery
12Volt 7.0Ah sealed lead-acid
Power Consumption (operation)
20W
Power Consumption (standby)
30mW
Remote control distance
≥30m
Rising time
5-6 sec
Falling time
5-6 sec
Dimensions (standing up)
640mm L x 200mm W x 320mm H
Dimensions (falling down)
640mm L x 200mm W x 90mm H
Gross weight
12kg



Dimension

Vertical Lifting Parking Spot Lock Remote Control Parking Space Protector 0


Functions & Features

1. Easy to Use
Touch the remote controller to lower your automatic parking lock to lay flat, then drive your vehicle into parking space; When leaving, touch the remote, and your parking lock will automatically rise up to prevent anyone else from using your parking space.

2. Easy to Install
Fix parking lock onto the ground by expansion bolts, that is all!

3. Rechargeable Battery with Long Continuous Use
Your parking lock is powered by a rechargeable battery. After being recharged, it will lasts for about 1000 uses, or about 6 months continuous use. Your parking lock comes with a recharging power pack.

4. Heavy Duty and Durable
The housing adopts high quality steel rolling which can bear Max. 5 ton weight. With spray plastic coating, the housing is waterproof, rustproof and dustp-roof enough to last about 5 years in hard weather. The sway arm made of steel rolling won`t deform even it is crushed by a vehicle.

5. Burgla-proof for safety (for some model)
The expansion bolts are placed inside the housing of parking lock, can`t be removed without a key of the housing. In case someone tries to remove it without permission, the parking lock will alarm loudly to remind its owner and also scares the thief.

6. Anti-disconnecting for Power Safety
The power connection is anti-disconnecting design in case the use misplace the battery causing short circuit

7. Alarm Against a Hit
In case a vehicle hit it, the parking lock will alarm loudly to remind the driver.

8. Manual control in case of no power
In case the power is off, just manually control the parking lock in emergency.

9 Alarm Against a Low Battery
If the battery is low, the parking lock will alarm to remind the owner to recharge the battery.



Production line

Vertical Lifting Parking Spot Lock Remote Control Parking Space Protector 1



Case reference



Vertical Lifting Parking Spot Lock Remote Control Parking Space Protector 2
