Hydraulic Road Blocker
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-HRB02 |

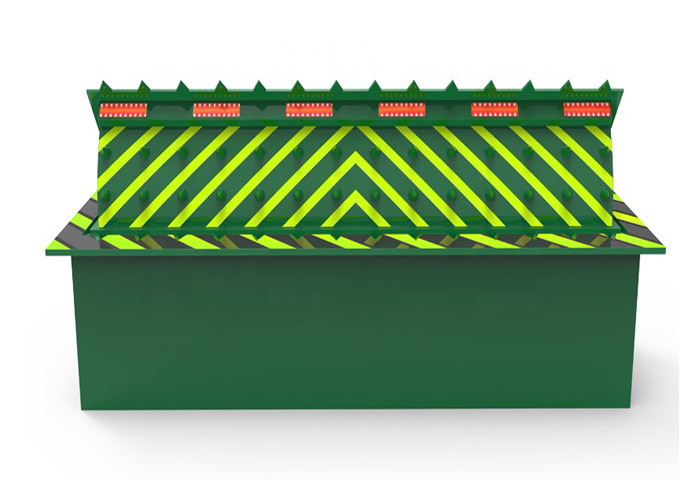

Full automatic security LED light warning hydraulic traffic road block barrier with spike
Standard Road blocker size: (mm)
L2000*W1000*H760,Rising height:500(Customized)
L2500*W1000*H760,Rising height:500(Customized)
L3000*W1000*H760,Rising height:500(Customized)
L3500*W1000*H760,Rising height:500(Customized)
L4000*W1000*H760,Rising height:500(Customized)
L4500*W1000*H760,Rising height:500(Customized)
L5000*W1000*H760,Rising height:500(Customized)
L5500*W1000*H760,Rising height:500(Customized)
L6000*W1000*H760,Rising height:500(Customized)
Product details:
| Control System | Electro- Hydraulic |
| Passing pressure: | ≤120 tons container trucks |
| System Dynamic power | 3.75KW |
| Rise time : | ≤1-3S(adjustable) |
| fall time : | ≤1-3S (adjustable) |
| Buffer function | buffer time :0.2s-0.5s |
| Running noise | ≤60 db |
| Voltage: | Three-phases 380V(control voltage 24V) |
| Oil container: | |
| Control solenoid valve | 24V |
| Lifting solenoid valve | 24V |
| Remote control distance | Approx .50-100m |
| Working Temperature : | -35℃~75℃(suitable) |
| Material: | A3 steel ,Spray anti-rust paint |
| Material thickness | 16mm (20 mm,25 mm optional) |
| Waterproof: | IP68, double sealed |
| LED light color | red,blue,green,yellow,purple,white…(customized) |
| Color: | red,blue,green,yellow…(can be customized) |
| Weight: | 1.5T |
Main Function
*Can be manually raised and fall down if power cut.
*Gang-control interface
*Reliable structure, heavy duty load, smooth action, low noise.
*In rising and falling, reversible operation is available .
*Hydraulic drive comes with hydraulic lock
*Welding cylinder
*PLC programming command control system
* Control box with LCD display, Chinese and English menu are available.
*PLC built-in encryption system
*Heavy duty hydraulic cylinders :HOB63-200CA+I Stroke200 Heavy duty Industrial Level
*Double dynamic double oil pump 2.3ML/time
Production line:
Professional installation instruction
*Easy-to-install, easy-to-maintain is what we pursue.
*We provide detail & professional installation instruction (in English) to make your construction much easier. With all the technical data, dimension and etc.
*Furthermore, our after-sales service support can also provide remote (via phone call) instruction for free.
