Paint Reflective Crash Rate Hotel Entrance Control 380V Hydraulic Road Traffic Blocker
Standard Road blocker size: (mm)
L2000*W1000*H760,Rising height:500(Customized)
L2500*W1000*H760,Rising height:500(Customized)
L3000*W1000*H760,Rising height:500(Customized)
L3500*W1000*H760,Rising height:500(Customized)
L4000*W1000*H760,Rising height:500(Customized)
L4500*W1000*H760,Rising height:500(Customized)
L5000*W1000*H760,Rising height:500(Customized)
L5500*W1000*H760,Rising height:500(Customized)
L6000*W1000*H760,Rising height:500(Customized)

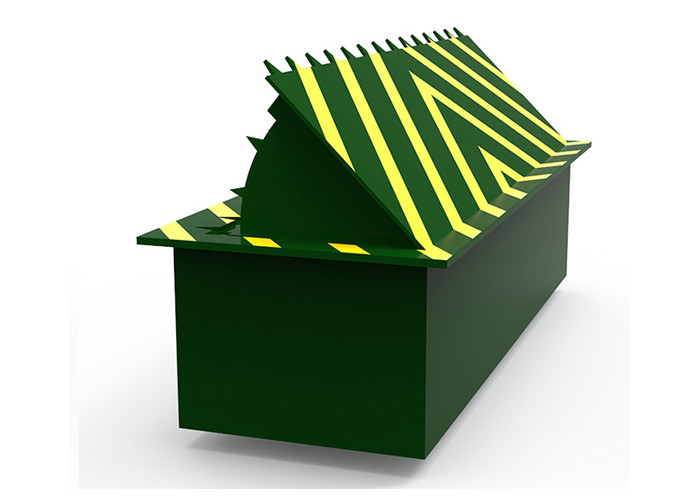

PRODUCT PHOTO
Standard Dimension (Can be customized)
TECHNICAL SPECIFICATIONS
|
Basic Information
|
|
Rising time
|
1-3s (Adjustable)
|
|
Dropping time
|
1-3s (Adjustable)
|
|
Dimension - Length
|
3-6m (On request)
|
|
Width
|
1000mm
|
|
Height underground
|
760mm
|
|
Rising height
|
500mm
|
|
Spikes
|
φ30mm*90mm (Optional)
|
|
Panel/Housing/Spikes
|
A3 Steel
|
|
Panel thickness
|
16(default) /20mm &25mm optional
|
|
Surface color (Customizable)
|
Red/Green/Yellow/Black
|
|
Anti-rust treatment
|
2 layers spray paint
|
|
Reflective tape
|
White/Black, Yellow/Black etc
|
|
LED warning light
|
RGB, various dynamic mode
|
|
Actuator
|
|
Hydraulic actuator
|
Electric & Manual pump integrated
|
|
Power supply
|
380VAC
|
|
Power consumption
|
3.75KW~5.5KW
|
|
Shock-reducing
|
Yes
|
|
Industrial hydraulic tank
|
80L~120L
|
|
Hydraulic hose
|
Conical sealing, high pressure
|
|
Ambient temperature
|
-35℃~75℃
|
|
Bearing capacity
|
0-100tons
|
Features of hydraulic road blocker:
1. System: hydraulic
2. Voltage: 3 phase 380V(control voltage DC24V)
3. Rising time: 1S to 3S (adjustable)
4. Working temperature: -35℃ to 75℃
5. Material: A3 steel, spay anti-rust paint
6. Weight: ± 1.2Tons
7. The road blocker has a buffer function
8. LED light color: red, blue, green, yellow, purple, white etc.(total 20 colors are available)
9. In case of power outage, the blocker can be manually raised and lowered.
10. Remote control distance: 50 to 100mm (depends on the environment)
11. Device running noise: ≤60 decibel
12. Control solenoid valve :24v
Application
Embassy, Military Base, Power Stations, Prison and other sensitive area where needs high level security protection.
Production line
Case reference
Professional installation instruction
*Easy-to-install, easy-to-maintain is what we pursue.
*We provide detail & professional installation instruction (in English) to make your construction much easier. With all the technical data, dimension and etc.
*Furthermore, our after-sales service support can also provide remote (via phone call) instruction for free.
FAQ:
Q: Are you trading company or manufacturer?
A: We are manufacturer. Warmly welcome you to visit us on site.
Q: Can I order products without your logo?
A: Sure. OEM service is available as well.
Q: What is the payment term?
A: 30% deposit and 70% before delivery
Q: What is the inco-term?
A: EXW, FOB, CIF, CFR, CPT, DDU, DDP etc.
