Mechanical Drive Tripod Turnstile Gate SUS304 RFID LED Indicator Half Height

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 500 pcs per month
Product Details
Brand SINOMATIC Material #304
Pass Speed 30 Persons/min Application Indoor/outdoor
Operational Voltage 24V Force Capacity More Than 100KG
Overall Dimension 48x28x98cm Package Wooden Box
High Light

Mechanical Drive Tripod Turnstile Gate

,

Tripod Turnstile Gate Auto Rotate

,

LED Indicator Half Height Turnstile

Leave a Message
Product Description

Indoor/outdoor Automatic RFID LED indicator half height stainsteel steel tripod turnstile



Mechanical Turnstile is suitable for both indoor and outdoor(with shed). They are optimized economical solution for railway, bus station, factory, colleges, commercial building, library, stadium, game park, hotel, super market, bank and etc



Product dimension:

Mechanical Drive Tripod Turnstile Gate SUS304 RFID LED Indicator Half Height 0



Features of Tripod Turnstile Gate:



1. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.


2. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.


3. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.


4. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.


5. When power off, the arm will be dropped down (optional set free passage when power off) to the request of fire protection. When power on, the arm can lift by hand.


6. Emergency configuration: The tripod will drop automatically by power off to provide a clear walkway for escape in the event of an emergency


7. Working environment: indoor(outdoor better use shelter)


8. Ultra quiet design: Mechanical design using third-generation silent, smooth operation no noise impact;


9. Super bright passage indicator: directional design of ultra- bright LED lights to indicate a more eye-catching ;


10. Multiple modes of function: can set the gate to be normally open or normally closed;


11. Access memory function: After several pedestrians card, access gates opportunity to remember the number, until the entire passage of pedestrians closing;



12. It can be used for intelligent control and management of the passage after equipped with diffent access control system.

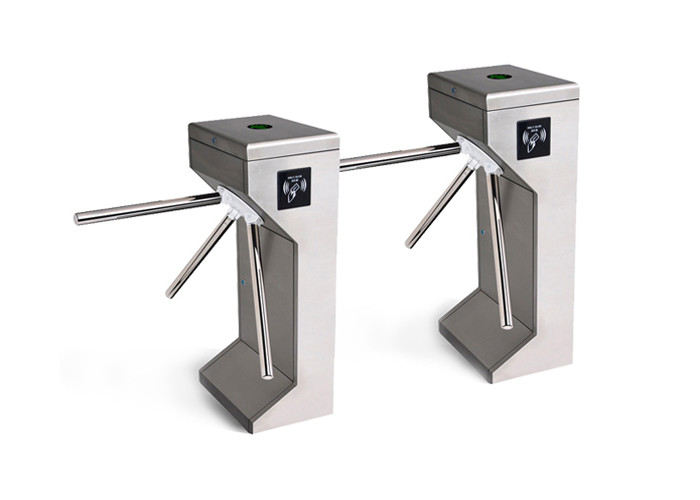

Product photo of turnstile:



Mechanical Drive Tripod Turnstile Gate SUS304 RFID LED Indicator Half Height 1

Mechanical Drive Tripod Turnstile Gate SUS304 RFID LED Indicator Half Height 2

Mechanical Drive Tripod Turnstile Gate SUS304 RFID LED Indicator Half Height 3

Mechanical Drive Tripod Turnstile Gate SUS304 RFID LED Indicator Half Height 4



Specifications of Tripod Turnstile Gate:



Item

Specification

Overall dimension

48x28x98cm

Power consumption

40W

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

Semi-auto type (No need motor)

Max flow rate

25 to 30 person per minute

Arm length

500mm

Passage width 550mm

Working temperature

-20°C~+60°C
