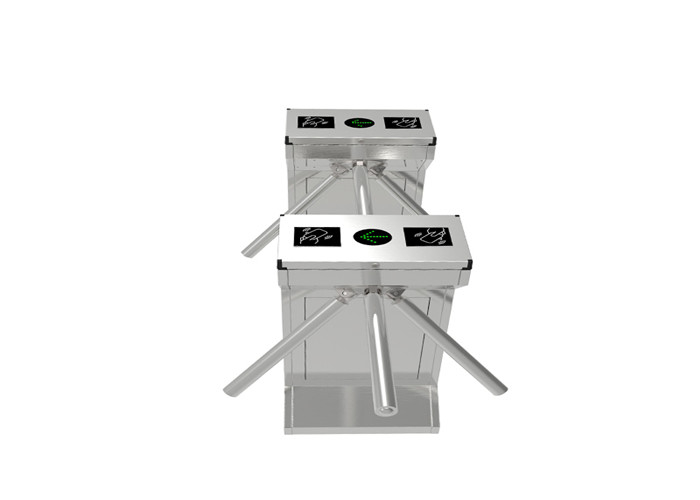

Stainless Steel Waist Height Tripod Turnstile Outdoor Security Semi Automatic

  • Stainless Steel Waist Height Tripod Turnstile Outdoor Security Semi Automatic
  • Stainless Steel Waist Height Tripod Turnstile Outdoor Security Semi Automatic
  • Stainless Steel Waist Height Tripod Turnstile Outdoor Security Semi Automatic
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Passage Width 550mm Throughput Rate 30 Person/ Minute
Power Supply 100V-240V Application Indoor/outdoor
Operational Voltage 24V Force Capacity More Than 100KG
High Light

Wire Drawing Tripod Turnstile Mechanism

,

IP45 Waist Height Tripod Turnstile

,

40W Waist Height Tripod Turnstile
Leave a Message
Product Description

Security semi-automatic waterproof three arm motor-free tripod turnstile suitable for outdoor



Product dimension:

Stainless Steel Waist Height Tripod Turnstile Outdoor Security Semi Automatic 0



Features of Tripod Turnstile Gate:



1. GB 304 stainless steel sheet metal housing which is beautiful and durable;


2. Dimensions : 480 × 280 × 980 (mm)


3. Channel width: less than 550 (mm);


4. Brake lever steering : one-way, two-way (optional)


5. Control mode: manual/ automatic (optional)


6. Can mount a variety of control devices:  RFID card reader, fingerprint device, barcode reader, etc.


7. Working environment: indoor(outdoor better use shelter)


8. Ultra quiet design: Mechanical design using third-generation silent, smooth operation no noise impact;


9. Super bright passage indicator: directional design of ultra- bright LED lights to indicate a more eye-catching ;


10. Multiple modes of function: can set the gate to be normally open or normally closed;


11. Access memory function: After several pedestrians card, access gates opportunity to remember the number, until the entire passage of pedestrians closing;







Product photo of different angles:



Stainless Steel Waist Height Tripod Turnstile Outdoor Security Semi Automatic 1

Stainless Steel Waist Height Tripod Turnstile Outdoor Security Semi Automatic 2

Stainless Steel Waist Height Tripod Turnstile Outdoor Security Semi Automatic 3



Specifications of Tripod Turnstile Gate:



Item

Specification

Power supply

100V TO 240V

Power consumption

40W

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

Semi-auto type (No need motor)

Max flow rate

25 to 30 person per minute

Arm length

500mm
Passage width 550mm

Working temperature

-20°C~+60°C
