Electronic Tripod Turnstile Gate with 304 Stainless Steel Housing and Brush DC 24V Motor for Bi-directional Access Control
  • Electronic Tripod Turnstile Gate with 304 Stainless Steel Housing and Brush DC 24V Motor for Bi-directional Access Control
  • Electronic Tripod Turnstile Gate with 304 Stainless Steel Housing and Brush DC 24V Motor for Bi-directional Access Control
Electronic Tripod Turnstile Gate with 304 Stainless Steel Housing and Brush DC 24V Motor for Bi-directional Access Control

Electronic Tripod Turnstile Gate with 304 Stainless Steel Housing and Brush DC 24V Motor for Bi-directional Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT11
Product Details
Max Flow Rate:
30 To 40 Person Per Minute
Material Of Housing:
304 Stainless Steel
Application:
Indoor/outdoor With Tent
Arm Length:
510mm
Package:
Carton Or Wooden Box
Motor:
Brush DC 24V
Highlight:

controlled access turnstiles

,

stainless steel turnstile

,

510mm arm length tripod turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
2,000 pcs per month
Product Description

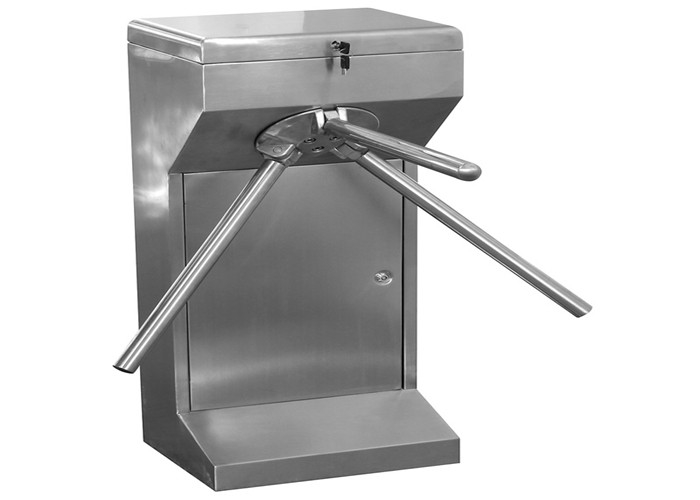

Electronic Half Height Tripod Turnstile Gate With Power Motor
A high-performance electronic access control solution designed for secure entry management with smooth operation and advanced functionality.
Key Features
  • Stable system operation with minimal noise and no mechanical impact
  • Self-check and alarm system for convenient maintenance
  • Multiple operating modes customizable to user requirements
  • Bi-directional operation with configurable access permissions
  • Remote control capability for arm lifting and falling
  • Automatic arm operation during power outages
  • Standard electrical interface compatible with various reader devices
  • Automatic people counting with LED display
  • Direction indicators for clear access guidance
  • Configurable card-reading memory functionality
Technical Specifications
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Power Consumption 50W
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Maximum Flow Rate 30 to 40 persons per minute
Arm Length 500mm
Working Temperature -20°C to +60°C
Current 3A
Control Circuit DC12V
Working Humidity 0 to 95% RH
IP Level IP44
Product Dimensions
Electronic Half Height Tripod Turnstile Gate dimensional diagram and specifications
Product Dimension Diagram
Motor System
Power motor system for tripod turnstile gate
Turnstile Power Motor
Installation Examples
Tripod turnstile gate installation in commercial building entrance
Commercial Building Installation
Tripod turnstile gate deployment in corporate facility
Corporate Facility Deployment
Why Choose Our Product
  • More than 20 years of OEM/ODM experience in access control turnstile manufacturing
  • Prompt delivery with standard model inventory availability
  • Custom OEM/ODM orders to meet specific client requirements
  • Sample orders accepted for testing before bulk purchasing
  • Comprehensive online technical support for business partners
  • Multiple transportation options including sea, air, and express shipping
  • Factory visits welcome during working days
