Cold Rolled Steel Car Parking Lock 6 Sec 20m Wireless Vertical Lifting
  • Cold Rolled Steel Car Parking Lock 6 Sec 20m Wireless Vertical Lifting
  • Cold Rolled Steel Car Parking Lock 6 Sec 20m Wireless Vertical Lifting

Cold Rolled Steel Car Parking Lock 6 Sec 20m Wireless Vertical Lifting

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-BW-3
Product Details
Running Time:
5-6 Sec
Up Height:
Down Height:
Motor Voltage:
Remote Control Distance:
20 Meters
High Light:

Steel Rolling Car Parking Lock


6 Sec Car Parking Lock


Vertical Lifting Remote Control Parking Lock

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability
5,000 pcs per month
Product Description

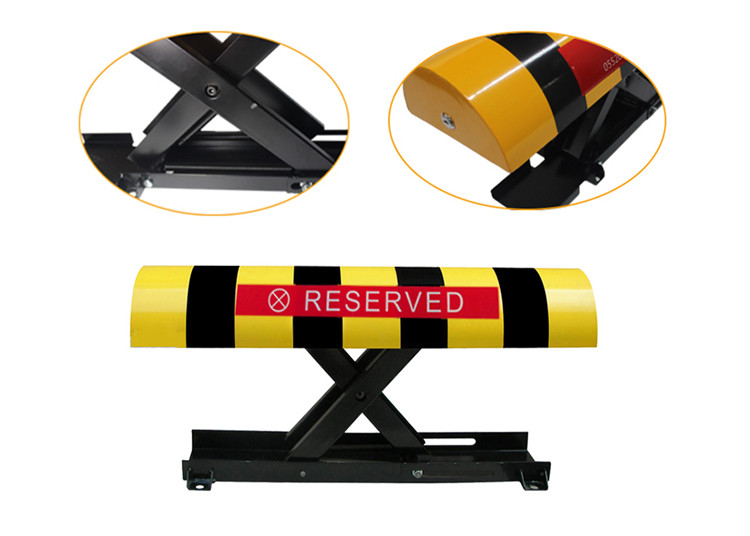

20 Meter Wireless Remote Control Distance Vertical Lifting Type Parking Lock Device




The remote control parking lock can protect your parking space from occupying. When the owners drive their cars to the parking, they can just press remote controller and the parking lock will automatically go down and the owner can park their cars in. When they leave, they press the remote controller and the parking lock will rise up and no one can park in the parking space. It changed the traditional way to get off the manual switch.It is easy to master technology with high quality of life.




Weight resistance ≤5 ton
Dimension 640*160*320mm
Up height 320mm
Down height 110mm
Outdoor Protection IP66
Finish Spraying plastic coating
Material 2.00mm steel rolling
Up and down time 5s -6s
Remote distance ≤20m
Lead Acid Battery About 3 months on a charge
Input voltage DC 12V or AC110/220V
Working power DC12V 7AH
Static Current(mA) ≤0.85Ah
Environment Temperature -40~+70 °c
Package dimension 700*200*110mm (1 set in a carton)
Weight G.W (13KG) / N.W (12.4KG)
Humidity 10%-95%



1. Protect your parking place from being occupied. Easy to use


2. Battery charge for one time can use for about 3 months.


3. Circuit protection: with reliable MCU and IC circuit intelligent control


4. Durable: Bearing weight up to 5 tons, the heavy weight loading on it , it won't be out of shape and destroyed


5. Waterproof,rustproof


6. Reset function: when go down or go up, meet the resistance from the outside force, it 'll reset itself, going to the

original way, so that protect the control panel's function


7. Noise-free: bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor

longevity and lesser friction


8. Theft-proof: the mounting bolts are installed inside of the cabinet. No one can open it without key


9. Easy installation: four prepared holes at the bottom of the cabinet makes it easy to install.parking lot


10. Manual operation: to operate the parking locks rising and going down manually with manual at emergency situation.


11. Alarm function: when overloading, over voltage and coming across hamper


12. Feasibility: suitable for all parking place and all kinds of car.

Cold Rolled Steel Car Parking Lock 6 Sec 20m Wireless Vertical Lifting 0


Pack List


1 x SN-BW-3 unit

1 x Charger

2 x Remote Controls

4 x Tamper-proof bolts 50mm

2 x Keys for control box

1 x Operation Manual



1. On the remote control, press the up square button to make the Parking Lock stand up. Press the bottom button

to make it lie flat.


2. When the battery is low on charge, an audible alarm will sound on the unit or it will not operate. Open the control

box with the key and unplug the plug from the socket by pushing the release. After removing the flat battery, connect

it to the re-charger (supplied). This must be plugged into 220/240 volt power. After 12 hours the battery will be fully

re-charged ready for operation.


3. When the battery is fully charged, the expected use is 300 operations or approx. 3 months assuming 2 lifts and 2

downs per day.


4. In case of an emergency and the unit is standing up and will not operate, use the hex key (supplied, it’s a good idea

to leave this key and key of the main box in your car), to open the main box and to undo the screw. The pin will then

be released. Remove the pin and lay the whole unit down.
