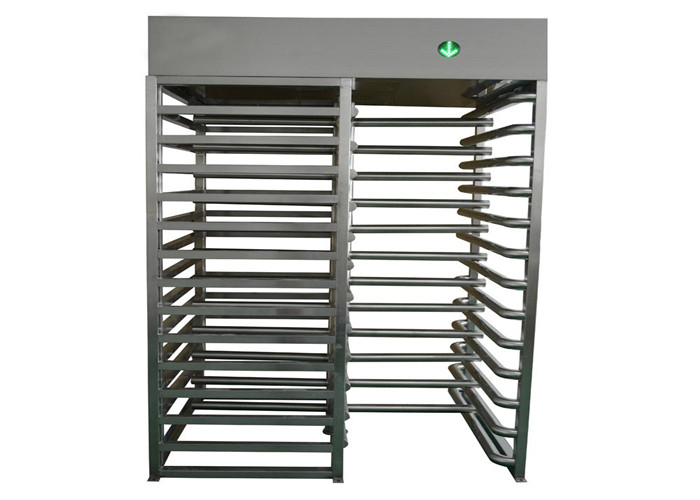

Indoor / Outdoor Security Turnstile Gate , 110V / 220V Turnstile Entrance Gates

Place of Origin SHENZHEN, CHINA
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FHT
Minimum Order Quantity 1
Price negotiable
Packaging Details CARTON/WOODEN
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 3,00pcs per month
Product Details
Product Type Full Height Turnstile Standard CE
Max Flow Rate 25 To 30 Person Per Minute Direction Single Or Bi-direction
Material Of Housing 304 Or 316 Stainless Steel Application Indoor/outdoor With Tent
Thickness Of Housing 1.2mm Or 1.5mm OEM/ODM Supported
Arm Length 500mm To 600mm Warranty 1 Year
High Light

turnstiles full height

,

full height barriers

Leave a Message
Product Description

Access control system 304 stainless steel security full height turnstile for Crowd Control



Introduction of Full Height Turnstile:



The advantage of Full Height Turnstiles is that they offer a high level of security with a low intelligence and high reliability. Although most often these characteristics are required for outside perimeter security, there are also applications within a building in which a full height turnstile would be well suited. In those cases the rugged design of most of these turnstiles is an obstacle.



Applications of Full Height Turnstile:



Full Height Turnstile is suitable for indoor or outdoor with tent for the follow areas:

Stadiums and sports facilities, Swimming pools and thermal baths,Gyms and fitness centres.
Amusement and theme parks, Exhibition centres and trade fairs, Zoos, Museums and Public transport.



Features of Full Height Turnstile:



  • Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel.

  • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



Specifications of Tripod Turnstile Gate:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Power consumption

40W

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

No motor

Max flow rate

25 to 30 person per minute

Arm length

510mm

Working temperature

-20°C~60°C



Cases of Full Height Turnstile:



Indoor / Outdoor Security Turnstile Gate , 110V / 220V Turnstile Entrance Gates 0
