ESD Tripod Turnstile Gate , Waist High Automated Security Gates With Lcd Screen

China ESD Tripod Turnstile Gate , Waist High Automated Security Gates With Lcd Screen supplier
ESD Tripod Turnstile Gate , Waist High Automated Security Gates With Lcd Screen supplier ESD Tripod Turnstile Gate , Waist High Automated Security Gates With Lcd Screen supplier ESD Tripod Turnstile Gate , Waist High Automated Security Gates With Lcd Screen supplier

Large Image :  ESD Tripod Turnstile Gate , Waist High Automated Security Gates With Lcd Screen

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-TT

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2,000 pcs per month
Contact Now
Detailed Product Description
Control Mode: ESD Passage Withd: 510mm
Package: Carton Or Wooden Box Housing: Can Be OEM/ODM
Body Material: 304 Or 316stainless Steel Testing Function: Wrist And Foot Strap





ESD Tripod Turnstile Gate , Waist High Automated Security Gates With Lcd Screen



Operation of ESD systems:



When press the test button ,test results within 5 seconds will be shown on the LCD screen ,if the press time is larger than 5 seconds,testing will be stopped automatically.Do not press the test button heavily.The test procedures are very simple and easy: Operator stand on the footplate with heel grounder or anti-static shoes,connect wrist strap and plug socket or alligator clip into the wrist strap jack,then press”PRESS TO TEST”button,LCD screen will tell you the test results.

Testing OK comes with beep sound and opening gate signal,operator need to push gate to enter.If testing NG need to check footwear or repeat the testing procedure.



Features of Tripod Turnstile Gate:



1.Equipped with standard card read window, can be connect with multi card-readdevice.



2.With function of break down self check and alarm,easy maintenance and operation.


3.Tripod Turnstile can be connected with any control device and can be controlled by external button or remote control. Can set one or bi-direction passing at will.


4.Auto reset function:

Arm rotates 120 degree and auto resets after detection of human/objects’ passing.

Auto cancels passing right and resets if the passgers does not pass within specified time.(the time can be set by operator)


5.Lighting indicator :High brightness passing indication.


6.Anti-follow function: tripod turnstile arm rotates 120 degree for normal passing and will hold tight and alarm if there has trailing.


7.Anti buffering function: tripod turnstile arm holds tightly after rotating corresponding angle to realize humanized protection .and auto reset when the external force disappears.

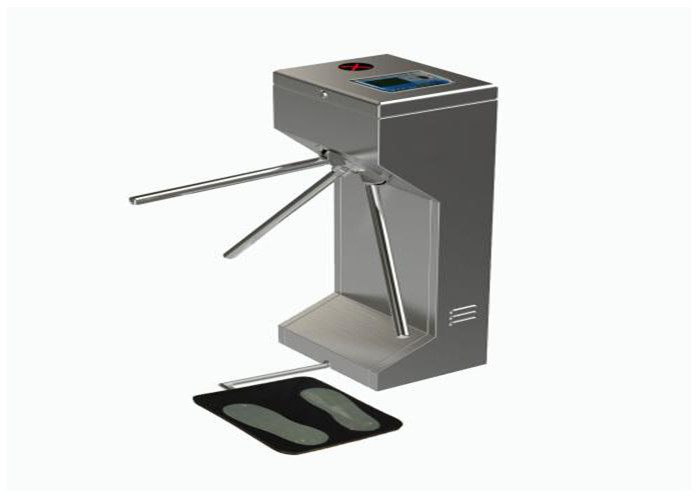

Photo of ESD tripod turnstile gate:

ESD Tripod Turnstile Gate , Waist High Automated Security Gates With Lcd Screen



ESD Tripod Turnstile Gate , Waist High Automated Security Gates With Lcd Screen





Specifications of Tripod Turnstile Gate:



Turnstile type Tripod turnstile gate
Power supply
AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption
40W
Access device input voltage
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Max flow rate
30 person per minute
Arm length
500mm
Working temperature
-20°C~+60°C
Current
3A
Control circuit
DC24V
Working humidity
0~95%RH
IP level
IP44
