Anti Vehicle Hydraulic Road Blocker With Spikes , 6 Meter Long Entrance Point

Certification
Good quality Flap Barrier Gate for sales
Good quality Flap Barrier Gate for sales
You products have a nice design and competitive price,I like it very much, will give you more orders in the future !

—— Finn Nielsen in Denmark

It is my pleasure to do the business with Shenzhen Sinomatic Technology Co. Ltd, they always do the best for us.

—— Jessica Laux in Germany

I'm Online Chat Now

Anti Vehicle Hydraulic Road Blocker With Spikes , 6 Meter Long Entrance Point

China Anti Vehicle Hydraulic Road Blocker With Spikes , 6 Meter Long Entrance Point supplier
Anti Vehicle Hydraulic Road Blocker With Spikes , 6 Meter Long Entrance Point supplier Anti Vehicle Hydraulic Road Blocker With Spikes , 6 Meter Long Entrance Point supplier

Large Image :  Anti Vehicle Hydraulic Road Blocker With Spikes , 6 Meter Long Entrance Point

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-HRB02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Control System: Hydraulic Voltage: 380V
System Dynamic Power: 3.7KW Package: Wooden Box
Min Passing Pressure: 80T Working Temperature: -35℃~75℃





Anti Vehicle Hydraulic Road Blocker With Spikes , 6 Meter Long Entrance Point



Introduction



We are amongst the most prominent enterprises actively engaged in manufacturing, trading and supplying a comprehensive array of Hydraulic Road Blocker. To design these road blockers, our dexterous professionals use high grade raw material and progressive technology. These are designed especially for entrance points which have a threat of vehicle attack or for the ones that have high security requirement



Our clients can avail from us a wide assortment of Hydraulic Road Blocker at industry leading prices. In the manner of international quality standards, our offered products are stringently checked by quality controllers upon various parameters with set industrial norms. If there is threat of vehicle attack or control of vehicle access in high security applications, these road blockers are the unique solution.



Features of hydraulic road blocker:

  • Drive unit is hydraulic, but in case of power failure road blocker can be lowered or lifted manually with the help of manual hand pump. Typical raise/lower time is 3 seconds.

  • n case of emergency, raise/lower time can be as low as 1.5 seconds. With the help of PLC controller, raise/lower function can be achieved by every kind of card readers, biometric readers like fingerprint or hand shape, radio control, on/off key switch etc.

  • Besides, safety accessories like photocells, inductive loop detectors, flashing lights or red/green traffic lights can be integrated to the system very easily.

  • Typical weight of a road blocker is 2-2.5 tons (depending on road blocker type).

  • Adopting the advanced hydraulic drive technology. The whole system is high security, reliability, and stability.
  • Manual hydraulic system meet the requirement of fire management (In case of power failure or malfunction)
  • Remote control device: Through wireless remote control, it can control the rising and falling of road blocker within distance of 30 meters
  • Convenient to maintain:  in the case of structural failure or machine maintenance, you can loose the screw on the cover and take off the 16mm cover plate for corresponding operation.
  • Strong and durable structure, high load bearing, movement smooth, low noise, fast speed, long service life.



Specifications:



Product Hydraulic road blocker

Control system

electric hydraulic control

Voltage

380V( control voltage:24V)

System Power

3.7KW

Min. loading

80T

Rising time

3 ~ 5 s

Falling time

3 ~ 5 s

Rising Height

350-800mm

Working temperature

-35℃~75℃.

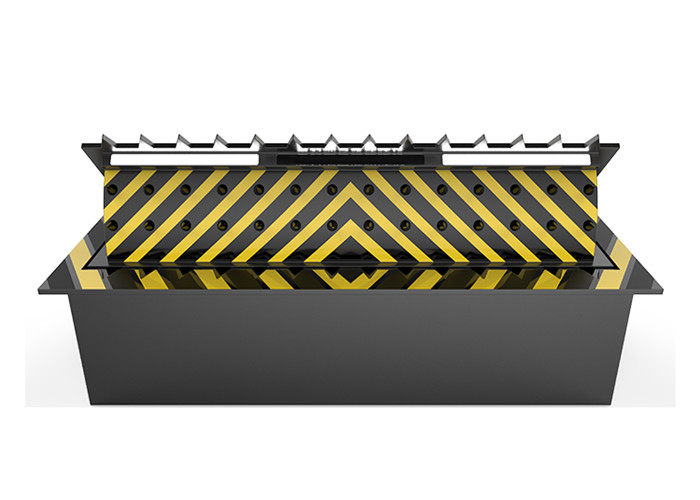

Photo of hydraulic road blocker:



Anti Vehicle Hydraulic Road Blocker With Spikes , 6 Meter Long Entrance Point

Anti Vehicle Hydraulic Road Blocker With Spikes , 6 Meter Long Entrance Point





Installation:


1) Installation position
The road blocker should be installed on the user-specified vehicle entrance and exit. Hydraulic station,
according to the actual situation of the scene, installed in the appropriate location for easy operation
and maintenance, close to the road blocker (inside or outside of security room ). Control box should be
set in a place where is easy to control and operate according to the customer request (Next to the work
station of the personnel on duty).


2) Pipeline connection
2.1. There are 5 meters of the hydraulic pressure pipeline equipped, the exceeding part should be
charged. After confirmed the installation position of road blocker and hydraulic station (can know how
long the oil pipeline), we need to excavate foundation. When the foundation excavation, we should take
the terrain into consideration to arrange the trend of the hydraulic oil pipe and control wire. We should
ensure that pipeline is under the condition of no damage to other underground facilities, then buried it
safely. Make mark in the appropriate location, to avoid damage of pipelines when other construction
operations is implementing.
2.2,groove size of the pipeline should be based on the specific terrain. Under normal circumstances,
the embedded depth of the hydraulic pipeline is 10 ~ 30 cm and width 15 cm , the embedded depth of
wire is 5 ~ 15 cm, width is about 5 cm.
2.3.Threading pipe (PVC pipe) should be added to protect the controlling wire, so is the oil pipe.
