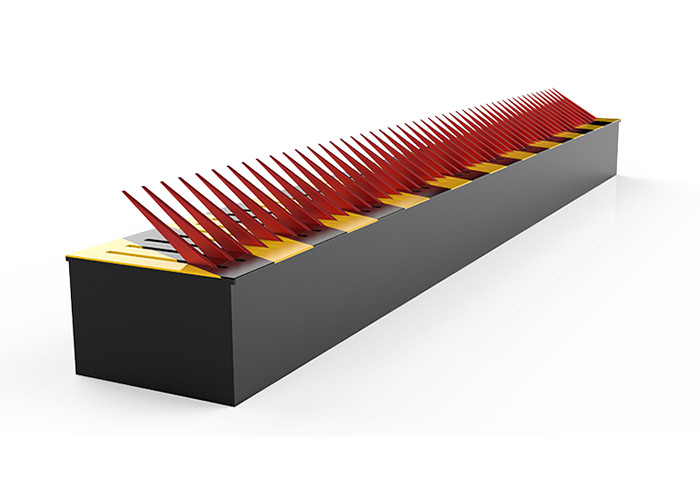

Flush Mounting Wireless Remote Control Tire Killer Barrier With Manual Release Device

Certification
Good quality Flap Barrier Gate for sales
Good quality Flap Barrier Gate for sales
You products have a nice design and competitive price,I like it very much, will give you more orders in the future !

—— Finn Nielsen in Denmark

It is my pleasure to do the business with Shenzhen Sinomatic Technology Co. Ltd, they always do the best for us.

—— Jessica Laux in Germany

I'm Online Chat Now

Flush Mounting Wireless Remote Control Tire Killer Barrier With Manual Release Device

China Flush Mounting Wireless Remote Control Tire Killer Barrier With Manual Release Device supplier
Flush Mounting Wireless Remote Control Tire Killer Barrier With Manual Release Device supplier Flush Mounting Wireless Remote Control Tire Killer Barrier With Manual Release Device supplier Flush Mounting Wireless Remote Control Tire Killer Barrier With Manual Release Device supplier

Large Image :  Flush Mounting Wireless Remote Control Tire Killer Barrier With Manual Release Device

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE
Model Number: SN-TK01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3,00pcs per month
Contact Now
Detailed Product Description
Material: Galvanized Sheet Steel/A3 Steel Surface Treatment: Paint With Reflective Stripe
Body Width: 700mm (standard) Min. Loading: 60T
Standard Color: Black And Yellow Lenght: 3m To 6m (standard)



Flush Mounting Wireless Remote Control Tire Killer Barrier With Manual Release Device



Product introduction:



100% duty cylce - designed for continuous and frequent use. Power is supplied from a 220V or 110V power supply as standard.



Tire killers can be interfaced to any access control systems. Traffic Light System is optional. We recommend that tire killer barricades are used in conjunction with a drop arm gate.



Control System
Control electronics utilized in tyre killer is PLC controlled. Motor is driven by a contactor and protected by a thermic breaker. The low current voltage required by the system is supplied by a switch mode power supply. There is a fuse for every component in the system. All the cables running in the system are colour coded and numbered to ease tracking. There is a control keyboard in the power group as well as the desk-top one for the guard room.


Construction and Drive Unit
Main mechanical elements forming the construction are heavy duty 12mm top plate This sophisticated mechanical design enables the tyre killer to withstand 60 tons of axle loads, besides, in case of crash, linkage bars transmit the impact directly to the foundation, therefore help to protect mechanism. A cushioned cylinder powers the road blocker up as it pivots on multi-sealed bearings. All the parts painted to yellow and black, in order to prevent rusting.



Accessories (Optional)

Flashing or red/green traffic lights
Remote control receiver, transmitter
Safety photocell, stand and casing
Inductive loop detector
Drainage pump
Card reader system



Specifications:



Frame Material A3 steel
Surface treatment Paint with reflective stripe
IP IP68
Standard color Black and yellow, Red and white
Length 1m to 6m or Length On Request
Width 700mm
Height from ground 70~110mm
Min weight capacity 60T
Blade height 150mm
Working environment -40℃~+70℃
Control mode Wireless Remote
Remote Control distance ≤30M
Up/Down speed 2s
Emergency Manual Lowering Yes
Connection Line to control Unit 10m (Max Length. 100m)
Voltage 220V/110V- 50/60Hz




Production Photo of tyre killer:



Flush Mounting Wireless Remote Control Tire Killer Barrier With Manual Release Device



Why choose our hydraulic tire killer?

  • PLC controlled

Control unit adopts PLC programmable controller,which can be a variety of different function models to meet the different needs of different users on function.



  • Unique structure & design

The core part of its unique design for the unit and mechanical power can effectively pass the mechanical energy to the drive unit,which is efficient.

  • Safety & reliability

Power failure or other emergencies, you can manually descent the cover plate of the road blocker to leave a clear channel letting the vehicle access,which is stable and reliable.

  • Durable & affordable

Good environmental protection and energy saving,low consumption,lower failure rate,longer service life reduced the maintenance costs. In addition, the installation and maintenance is more convenient and quicker by using untraditional mechanism design.
