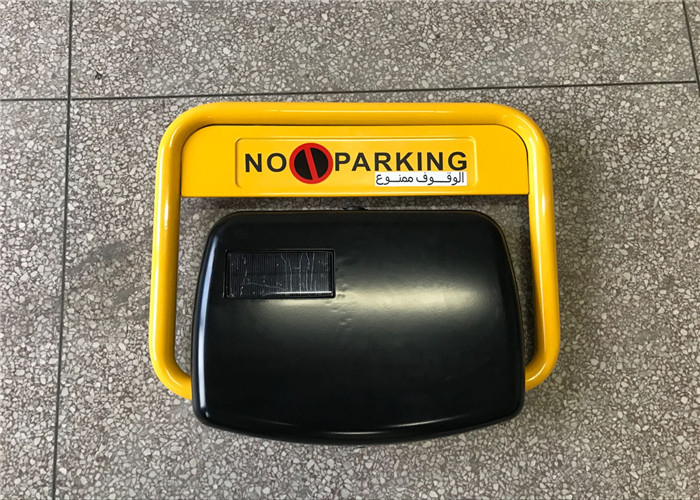

Long Distance Remote Control Parking Lock Battery And Solar Powered 430mm Height

Long Distance Remote Control Parking Lock Battery And Solar Powered 430mm Height

    • Long Distance Remote Control Parking Lock Battery And Solar Powered 430mm Height
    • Long Distance Remote Control Parking Lock Battery And Solar Powered 430mm Height
  • Long Distance Remote Control Parking Lock Battery And Solar Powered 430mm Height

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-6E

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 120 to 150 / set
    Packaging Details: CARTON/WOODEN
    Delivery Time: 3-7 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram, , L/C, D/A, D/P
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Working Power: DC6V, 7Ah Static Current: 3.5MA
    Working Current: 3.5A Power Voltage: DC6V
    Recharge Time: Every 3 Months Remote Control Distrance: At Least 15m



    Long Distance Remote Control Parking Lock Battery And Solar Powered 430mm Height



    Introduction of parking lock:



    Car Parking Lock is an iron mechanical device which can avoid parking place being occupied by others.

    Car Parking Lock is installed on flat cement floor. And it is generally installed in 1/3 entrance of parking space.



    Technical parameters of solar type parking lock:



    RATED VOLTAGE

    DC6V

    WORKING CURRENT

    3.5A

    RUNNING TIME RISES OR FALLS

    6 s

    AFTER RISING ALTITUDE

    430mm

    AFTER DROPPING ALTITUDE

    80mm

    REMOTE CONTROLLED DISTANCE

    ≤15m

    ENVIRONMENT TEMPERATURE

    -20℃~+55℃

    SIZE OF SOLAR ENERGY PANEL

    130×60×4.3mm

    DIMENSIONS

    520×460×80mm

    NET WEIGHT

     9kg



    FUNCTIONAL FEATURES INTRODUCTION



    • Manual control

    If the battery is short of power or out of service, manual control can be made by pulling/pressing the  rocking arm of the parking lock, so that the battery can be conveniently taken out for recharging,  replacement or maintenance.

    • Power Cut-off on Resistance

    The power shall be automatically switched off on external forces unaffordable in the lifting of the parking  lock to protect the electrical motor from being damaged.

    • Power Shortage Indication

    When the power is too short to start the parking lock, the indication lamp on the parking lock will flicker for  three times to remind the user of recharging the battery in time.

    • Alarming and Resetting on External Force

    For these series parking lock, if the rocking arm is forced to be lowered when lifting, with the action of the  external force, the front/back angle of the rocking arm will be changed, the parking lock will alarm to remind  the external force applier to remove external force or remind the managerial staff to make treatment.  The rocking arm will reset automatically after 5~7 seconds.

    • Theft Protection

    The position of the foundation for parking lock and ground installation will be protected by a large external  cover. The cover can only be opened by the user with the key to make theft protection.



    More photo car parking lock:



    Long Distance Remote Control Parking Lock Battery And Solar Powered 430mm Height



    INSTALLATION PRINCIPLE AND METHOD

    1. Installation Principle

    A. Installation Position

                The vehicle shall not touch the parking lock when going in and out of the parking space.  The parking lock is suggested to be installed in the middle of entrance of parking space.

                B.  Installation Site

    The lock is required to be installed on level and dry cement ground.



         2.  Installation Method

    A.  Lift the rocking arm manually with hands, open the lock with key. Open the upper cover to install  the lock.

    B.  Drill three holes (12mm of diameter and 50mm of depth) and install M8 expansion bolts on the ground  according to the locations of three installation holes on the parking lock foundation.

    C.  Cover three foundation spacers on the expansion bolts, and then cover parking lock foundation, install  and tighten the bolts to finish installation.

    D. Before using, first insert the plug which the color is corresponding to the solar panel lead wire into  the battery pins(red for positive electrode and blue for negative electrode). Then set the battery on level position. Insert the plug into the socket of the parking lock, sort up the wires.

    E.  Install the upper cover. Keep the upper and lower fixed blocks joggling (hold the back of upper cover  to push forward as indicated in the schematic). Then lock the upper cover.
