Heavy Loaded Car Parking Lock For Intelligent Auto Management System

Heavy Loaded Car Parking Lock For Intelligent Auto Management System

    • Heavy Loaded Car Parking Lock For Intelligent Auto Management System
    • Heavy Loaded Car Parking Lock For Intelligent Auto Management System
  • Heavy Loaded Car Parking Lock For Intelligent Auto Management System

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-EL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 3-7 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram, , L/C, D/A, D/P
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Warranty: One Year Rising Height: 420mm
    Lowering Height: 80mm Working Current: 3.5A
    Rising Time: 6S Lowering Time: 6S

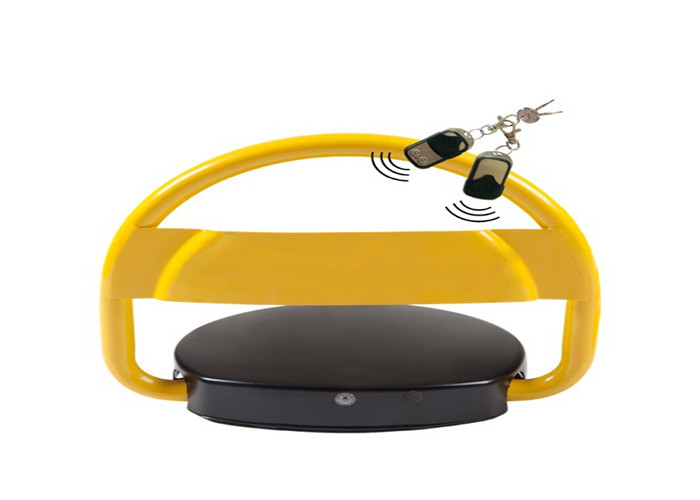

    Heavy Loaded Car Parking Lock For Intelligent Auto Management System



    What's the material?

    --steel arm,aluminium alloy base,cold-rolled sheet black cover



    What's the function & features?
    --solar panel charged, environmental protection, economize manpower

    --180° two ways arm protection

    --manual relwase available in emergency

    --LED flashes arm protection when hitting



    Introduction of SN parking lock:



    The series of parking lock developed by our company is featured by nice appearance, novel structure,  easy control, strong function and high security and reliability etc. The parking lock can effectively avoid  the misusing or occupation of the parking lot and is a good assistant for parking lot managements of  top-grade residential areas, shopping centers, hotels, offices and airports etc.



    Technical parameters of solar type parking lock:



    RATED VOLTAGE

    DC6V

    WORKING CURRENT

    3.5A

    RUNNING TIME RISES OR FALLS

    6 s

    AFTER RISING ALTITUDE

    420mm

    AFTER DROPPING ALTITUDE

    75mm

    REMOTE CONTROLLED DISTANCE

    ≤15m

    ENVIRONMENT TEMPERATURE

    -20℃~+55℃

    SIZE OF SOLAR ENERGY PANEL

    130×60×4.3mm

    DIMENSIONS

    460×460×75mm

    NET WEIGHT

     8kg



    FUNCTIONAL FEATURES INTRODUCTION



    1. Pressure Resistance:

    The parking lock can endure a rolling force of 300kg under the falling status without being damaged.

    2. Self locking:

    When the parking lock is at lifted or lowered status, no one else can make permanent changing on  the status except the user.

    3. Sealing

    The IP protection level is 65, which can fully prevent dust from entering and avoid damages caused by  water washing.



    More photo car parking lock:

    Heavy Loaded Car Parking Lock For Intelligent Auto Management System



    Heavy Loaded Car Parking Lock For Intelligent Auto Management System

    Packing list:





    S/N

    NAME

    QUANTITY

    1

    Parking lock

    1PC

    2

    Charger

    1PC

    3

    Remote control

    2PCS

    4

    Key

    2PCS

    5

    Battery

    1PC

    6

    Expansion Steel Bolt

    3PCS

    7

    Foundation Spacer

    3PCS

    8

    Operation Instruction

    1PC
