Vehicle Hydraulic Road Blocker / Forceful armor superior protection rising kerb

Certification
Good quality Flap Barrier Gate for sales
Good quality Flap Barrier Gate for sales
You products have a nice design and competitive price,I like it very much, will give you more orders in the future !

—— Finn Nielsen in Denmark

It is my pleasure to do the business with Shenzhen Sinomatic Technology Co. Ltd, they always do the best for us.

—— Jessica Laux in Germany

I'm Online Chat Now

Vehicle Hydraulic Road Blocker / Forceful armor superior protection rising kerb

China Vehicle Hydraulic Road Blocker / Forceful armor superior protection rising kerb supplier
Vehicle Hydraulic Road Blocker / Forceful armor superior protection rising kerb supplier Vehicle Hydraulic Road Blocker / Forceful armor superior protection rising kerb supplier

Large Image :  Vehicle Hydraulic Road Blocker / Forceful armor superior protection rising kerb

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-HRB02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Control System: Electric Hydraulic System Speed: Max 5s(adjustable)
Warranty: One Year Usage: Heavy Duty
Color: Optional Package: Wooden Box



Vehicle Hydraulic Road Blocker / Forceful armor superior protection rising kerb



he Rising Kerb Road Blocker, is the ultimate in preventing access into your site, it provides high security coupled with a very visible deterrent and can be installed in a variety of different applications in use for manned or unmanned sites.



Features of hydraulic road blocker:

  • Strong and durable structure, high load bearing, movement smooth, low noise, fast speed, long service life.
  • Adopting PLC control, system operation is stable and performance is reliable., easy to integrate
  • Supporting the gang control with parking barrier or other equipment. It can also work with other access control system.
  • Adopting the advanced hydraulic drive technology. The whole system is high security, reliability, and stability.
  • Manual hydraulic system meet the requirement of fire management (In case of power failure or malfunction)
  • Remote control device: Through wireless remote control, it can control the rising and falling of road blocker within distance of 30 meters
  • Convenient to maintain:  in the case of structural failure or machine maintenance, you can loose the screw on the cover and take off the 16mm cover plate for corresponding operation.



Specifications of hydraulic road blocker:



Product Hydraulic road blocker

Control system

electric hydraulic control

Voltage

380V( control voltage:24V)

System Power

1.5KW/2.2KW/3.7KW

Min. loading

70T

Rising time

3 ~ 5 s

Falling time

3 ~ 5 s

Rising Height

350-800mm

Working temperature

-20℃~75℃.

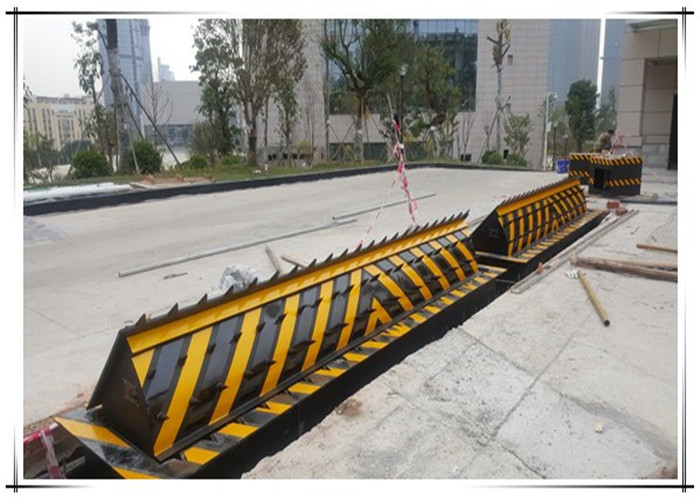

Photo of hydraulic road blocker:

Vehicle Hydraulic Road Blocker / Forceful armor superior protection rising kerb





Installation:


1) Installation position
The road blocker should be installed on the user-specified vehicle entrance and exit. Hydraulic station,
according to the actual situation of the scene, installed in the appropriate location for easy operation
and maintenance, close to the road blocker (inside or outside of security room ). Control box should be
set in a place where is easy to control and operate according to the customer request (Next to the work
station of the personnel on duty).


2) Pipeline connection
2.1. There are 5 meters of the hydraulic pressure pipeline equipped, the exceeding part should be
charged. After confirmed the installation position of road blocker and hydraulic station (can know how
long the oil pipeline), we need to excavate foundation. When the foundation excavation, we should take
the terrain into consideration to arrange the trend of the hydraulic oil pipe and control wire. We should
ensure that pipeline is under the condition of no damage to other underground facilities, then buried it
safely. Make mark in the appropriate location, to avoid damage of pipelines when other construction
operations is implementing.
2.2,groove size of the pipeline should be based on the specific terrain. Under normal circumstances,
the embedded depth of the hydraulic pipeline is 10 ~ 30 cm and width 15 cm , the embedded depth of
wire is 5 ~ 15 cm, width is about 5 cm.
2.3.Threading pipe (PVC pipe) should be added to protect the controlling wire, so is the oil pipe.
