PAS 68 Heavy Duty Rising Kerbs with Manual Hand Pumping Facility

Certification
Good quality Flap Barrier Gate for sales
Good quality Flap Barrier Gate for sales
You products have a nice design and competitive price,I like it very much, will give you more orders in the future !

—— Finn Nielsen in Denmark

It is my pleasure to do the business with Shenzhen Sinomatic Technology Co. Ltd, they always do the best for us.

—— Jessica Laux in Germany

I'm Online Chat Now

PAS 68 Heavy Duty Rising Kerbs with Manual Hand Pumping Facility

China PAS 68 Heavy Duty Rising Kerbs with Manual Hand Pumping Facility supplier
PAS 68 Heavy Duty Rising Kerbs with Manual Hand Pumping Facility supplier PAS 68 Heavy Duty Rising Kerbs with Manual Hand Pumping Facility supplier

Large Image :  PAS 68 Heavy Duty Rising Kerbs with Manual Hand Pumping Facility

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-HRB02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Control Mode: Wire Control, Remote Control Blocker Height: Default 76cm
Speed Of Openning: Max 5 Secs Warranty: 1 Year At Least
Usage: Heavy Duty Color: Optional



PAS 68 Heavy Duty Rising Kerbs with Manual Hand Pumping Facility



Introduction of Hydraulic road blocker:



Road blockers are designed especially for entrance points which have a threat of vehicle attack or for the ones that have high security requirements. If there is a threat of vehicle attack in addition to the control of vehicle access in high security applications, hydraulic road blockers are the unique solution and the most secure systems. Even though the attack is from high tonnage vehicles with high speeds, it's not possible for the vehicle to keep on moving because of the damage given to front, wheels and the bottom of the vehicle.

Road blocker with parking barrier gate, smart card charging management system and access control attendance system compose a perfect crossing management system( can be added according to user`s requirement)



Features of hydraulic road blocker:

  • Strong and durable structure, high load bearing, movement smooth, low noise, fast speed, long service life.
  • Adopting PLC control, system operation is stable and performance is reliable., easy to integrate
  • Supporting the gang control with parking barrier or other equipment. It can also work with other access control system.
  • Adopting the advanced hydraulic drive technology. The whole system is high security, reliability, and stability.
  • Manual hydraulic system meet the requirement of fire management (In case of power failure or malfunction)
  • Remote control device: Through wireless remote control, it can control the rising and falling of road blocker within distance of 30 meters
  • Convenient to maintain:  in the case of structural failure or machine maintenance, you can loose the screw on the cover and take off the 16mm cover plate for corresponding operation.



Specifications of hydraulic road blocker:



Product Hydraulic road blocker

Control system

electric hydraulic control

Voltage

380V( control voltage:24V)

System Power

1.5KW/2.2KW/3.7KW

Min. loading

70T

Rising time

3 ~ 5 s

Falling time

3 ~ 5 s

Rising Height

350-800mm

Working temperature

-20℃~75℃.

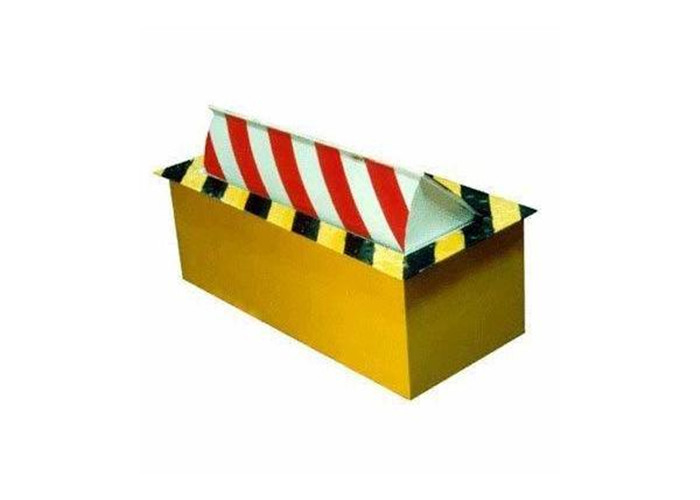

Photo of hydraulic road blocker:

PAS 68 Heavy Duty Rising Kerbs with Manual Hand Pumping Facility





Installation:


1) Installation position
The road blocker should be installed on the user-specified vehicle entrance and exit. Hydraulic station,
according to the actual situation of the scene, installed in the appropriate location for easy operation
and maintenance, close to the road blocker (inside or outside of security room ). Control box should be
set in a place where is easy to control and operate according to the customer request (Next to the work
station of the personnel on duty).


2) Pipeline connection
2.1. There are 5 meters of the hydraulic pressure pipeline equipped, the exceeding part should be
charged. After confirmed the installation position of road blocker and hydraulic station (can know how
long the oil pipeline), we need to excavate foundation. When the foundation excavation, we should take
the terrain into consideration to arrange the trend of the hydraulic oil pipe and control wire. We should
ensure that pipeline is under the condition of no damage to other underground facilities, then buried it
safely. Make mark in the appropriate location, to avoid damage of pipelines when other construction
operations is implementing.
2.2,groove size of the pipeline should be based on the specific terrain. Under normal circumstances,
the embedded depth of the hydraulic pipeline is 10 ~ 30 cm and width 15 cm , the embedded depth of
wire is 5 ~ 15 cm, width is about 5 cm.
2.3.Threading pipe (PVC pipe) should be added to protect the controlling wire, so is the oil pipe.
