Roadway Safety Speed Hump Traffic Spike Barrier Iron Flush Mounting

China Roadway Safety Speed Hump Traffic Spike Barrier Iron Flush Mounting supplier
Roadway Safety Speed Hump Traffic Spike Barrier Iron Flush Mounting supplier Roadway Safety Speed Hump Traffic Spike Barrier Iron Flush Mounting supplier

Large Image :  Roadway Safety Speed Hump Traffic Spike Barrier Iron Flush Mounting

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-TK02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3,00 pcs per month
Contact Now
Detailed Product Description
Mounting Type: Flush Mounting Blade Thickness: 10mm (standard)
Width: 700mm (standard) Min. Loading: 60T
Standard Color: Black And Yellow Lenght: 3m To 6m (standard)

Roadway Safety Speed Hump Traffic Spike Barrier Iron Flush Mounting



Product description:



The range Anti-Terror/High Security consists of different systems/products. Within the range High Security the Tyre Killer forms a high degree of protection against the unauthorized entry or exit of motor vehicles of protected areas.



Tyre Killers offer vulnerable installations a high level of security against unauthorised vehicles forcibly entering or exiting the premises. If a vehicle attempts to break through, both its tyres and axles will be destroyed and further progress will certainly be prevented. Typical areas of application are: embassies, industrial plants, power stations, parking lots, car parks, airports, military plants and private properties. elkosta Tyre Killers offer high security.



Advantage:



1.Solid and endurable structure

2.Low noise

3.Low trouble rate, high reliability,long life cycle.

4.Easy maintenance

5.Can combine with other control equipment making the barrier auto control

6.Manual release is available for emergency operation



Tire killer system consists:



Tyre killer system consists of a main frame, electric transmission station and electric control box.

  • Main frame: mainly include A3 steel, steel blade, base and drive shaft. The whole body is steel structure , adopts GB A3 carbon steel plate and channel steel welding with high-strength load-bearing capacity and anti-collision capacity; Inside body without electrical appliances and line settings , which is waterproof and safe. The device is mounted on the driveway or designated location to limit vehicle traffic.
  • The electric transmission station: mainly include motor, gear box, limit switch, optical axis,bearings, base and a full transmission components.Inner structure no gear, no rotating belt, no maintenance,more stable and longer lift. It’s the power source of the tyre killer system, mounted on the side of the main frame. When outage, can drop down or lift up the steel blade manually.
  • Electric control part: mainly include control board, transformer, relays, long distance remote control device and wire control device.



Specifications of  electromechanical tyre killer



Material

Q235 steel/A3 steel

Surface treatment

Paint with reflective stripe

IP

IP67

Standard color

Black and yellow

Length

3m to 6m (standard)

Width

700mm (standard)

Height from ground

70~110mm

Min weight capacity

40T

Blade height

150mm

Blade thickness

10mm

Operation mode

Electromechanical

Working environment

-40℃~+70℃

Control mode

Short range wireless remote control/drive-by-wire

Control distance

≤100M

Up/Down speed

2s

Voltage

220V/110V ±10%

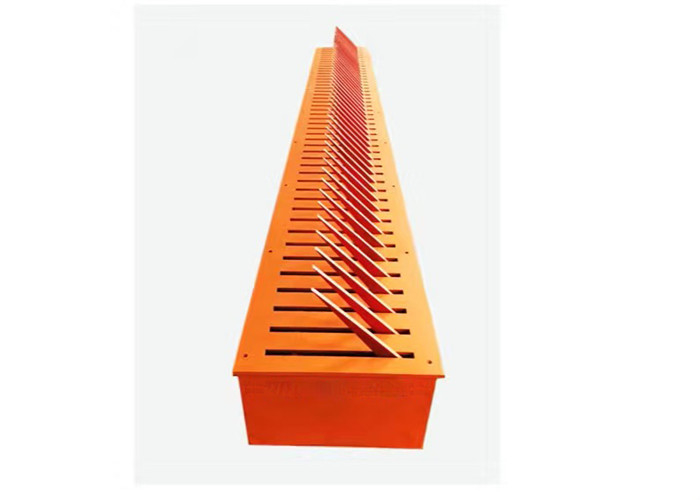

Photo of tyre killer:



Roadway Safety Speed Hump Traffic Spike Barrier Iron Flush Mounting
