Anti terror Vehicle control automatic traffic spikes Surface mounting with sharp blades

Certification
Good quality Flap Barrier Gate for sales
Good quality Flap Barrier Gate for sales
You products have a nice design and competitive price,I like it very much, will give you more orders in the future !

—— Finn Nielsen in Denmark

It is my pleasure to do the business with Shenzhen Sinomatic Technology Co. Ltd, they always do the best for us.

—— Jessica Laux in Germany

I'm Online Chat Now

Anti terror Vehicle control automatic traffic spikes Surface mounting with sharp blades

China Anti terror Vehicle control automatic traffic spikes Surface mounting with sharp blades supplier
Anti terror Vehicle control automatic traffic spikes Surface mounting with sharp blades supplier Anti terror Vehicle control automatic traffic spikes Surface mounting with sharp blades supplier

Large Image :  Anti terror Vehicle control automatic traffic spikes Surface mounting with sharp blades

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-TK01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3,00 pcs per month
Contact Now
Detailed Product Description
Working Temperature: -40° C To +70° C Operating Times: 5 Million Times
Frame Width: 700mm (standard) Min. Loading: 40Tons
Color: Yellow/black; Red/white Lenght: Max 6m (standard)



Anti terror Vehicle control automatic traffic spikes Surface mounting with sharp blades



Brief introduction:



As the barrier raises, the tyre killer teeth retract below ground level, providing safe access for authorised vehicles. When the vehicle has passed, the barrier lowers and the teeth return to the active position, ensuring total protection from unauthorised vehicle intrusion. Tyre killer barriers may be used with any type of access control system, and the use of an underground detector loop acts as a safety device to prevent the barrier operating when an authorised vehicle is stationary over the teeth.



Main Features:



1. Can combine with other control equipment making the barrier auto control

2. Solid and endurable structure, the largest traffic capacity is up to 60t

3. The system is safe, reliable and stable

4. Quite and fast

5. The working environment is -40° C to +70° C

6. Low trouble rate, high reliability, long life cycle,

7. Easy maintenance, and the rate is low

8. Perform exactly and operate steadily, making the barrier low noise

9. In case of electric failure or trouble, the movable barrier can be manually operated to return to the horizontal position, making the cars pass smooth





Tire killer system consists:



Tyre killer system consists of a main frame, electric transmission station and electric control box.

  • Main frame: mainly include A3 steel, steel blade, base and drive shaft. The whole body is steel structure , adopts GB A3 carbon steel plate and channel steel welding with high-strength load-bearing capacity and anti-collision capacity; Inside body without electrical appliances and line settings , which is waterproof and safe. The device is mounted on the driveway or designated location to limit vehicle traffic.
  • The electric transmission station: mainly include motor, gear box, limit switch, optical axis,bearings, base and a full transmission components.Inner structure no gear, no rotating belt, no maintenance,more stable and longer lift. It’s the power source of the tyre killer system, mounted on the side of the main frame. When outage, can drop down or lift up the steel blade manually.
  • Electric control part: mainly include control board, transformer, relays, long distance remote control device and wire control device.



Specifications of automatic tyre killer



Product Automatic tyre killer

Material

Q235 steel/A3 steel

Surface treatment

Paint with reflective stripe

IP

IP67

Standard color

Black and yellow

Length

3m to 6m (standard)

Width

700mm (standard)

Height from ground

70~110mm

Min weight capacity

40T

Blade height

150mm

Blade thickness

10mm

Operation mode

Electromechanical

Working environment

-40℃~+70℃

Control mode

Short range wireless remote control/drive-by-wire

Control distance

≤100M

Up/Down speed

1s

Voltage

220V/110V ±10%

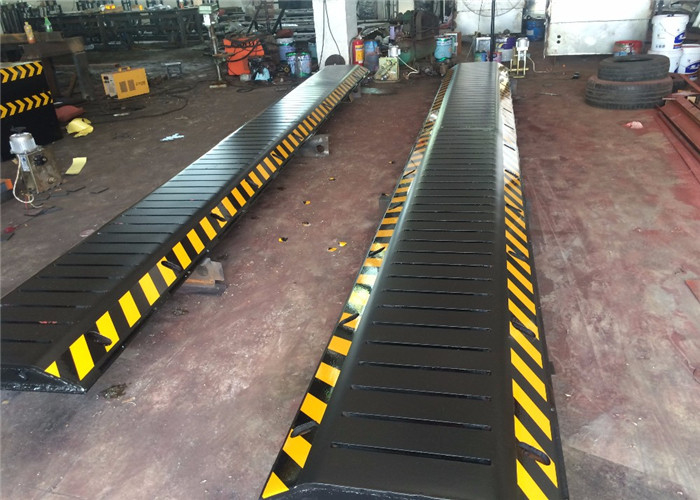

Photo of tyre killer:



Anti terror Vehicle control automatic traffic spikes Surface mounting with sharp blades
