IP67 anti crash bi directional remote control road spikes with reflective stripe

IP67 anti crash bi directional remote control road spikes with reflective stripe

    • IP67 anti crash bi directional remote control road spikes with reflective stripe
    • IP67 anti crash bi directional remote control road spikes with reflective stripe
  • IP67 anti crash bi directional remote control road spikes with reflective stripe

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-TK01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-7 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 3,00 pcs per month
    Contact Now
    Detailed Product Description
    Rising Speed: 1s Blade Thickness: 10mm
    Width: 700mm (standard) Min. Loading: 40T
    Standard Color: Black And Yellow Lenght: 3m To 6m (standard)



    IP67 anti crash bi directional remote control road spikes with reflective stripe



    Product description:



    Our Tire Killer are specially designed for use at sites requiring high levels of security and dealing with high traffic pressure. Our products are simple to install and provide excellent level of efficiency in vehicle control.



    The tire killer is often used in some strict traffic control area, where need to be blocked and controlled the vehicle enter or exit. Such as government location, police station, military base and some important parking area. Tips: Spike is very dangerous to human and car. Please be caution while it is being used.



    Advantage:



    1.Solid and endurable structure

    2.Low noise

    3.Low trouble rate, high reliability,long life cycle.

    4.Easy maintenance

    5.Can combine with other control equipment making the barrier auto control

    6.Manual release is available for emergency operation



    Tire killer system consists:



    Tyre killer system consists of a main frame, electric transmission station and electric control box.

    • Main frame: mainly include A3 steel, steel blade, base and drive shaft. The whole body is steel structure , adopts GB A3 carbon steel plate and channel steel welding with high-strength load-bearing capacity and anti-collision capacity; Inside body without electrical appliances and line settings , which is waterproof and safe. The device is mounted on the driveway or designated location to limit vehicle traffic.
    • The electric transmission station: mainly include motor, gear box, limit switch, optical axis,bearings, base and a full transmission components.Inner structure no gear, no rotating belt, no maintenance,more stable and longer lift. It’s the power source of the tyre killer system, mounted on the side of the main frame. When outage, can drop down or lift up the steel blade manually.
    • Electric control part: mainly include control board, transformer, relays, long distance remote control device and wire control device.



    Specifications of automatic tyre killer



    Product Automatic tyre killer

    Material

    Q235 steel/A3 steel

    Surface treatment

    Paint with reflective stripe

    IP

    IP67

    Standard color

    Black and yellow

    Length

    3m to 6m (standard)

    Width

    700mm (standard)

    Height from ground

    70~110mm

    Min weight capacity

    40T

    Blade height

    150mm

    Blade thickness

    10mm

    Operation mode

    Electromechanical

    Working environment

    -40℃~+70℃

    Control mode

    Short range wireless remote control/drive-by-wire

    Control distance

    ≤100M

    Up/Down speed

    2s

    Voltage

    220V/110V ±10%

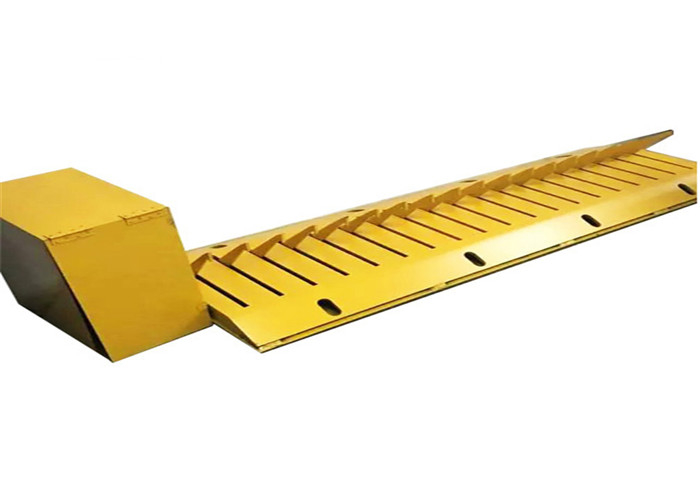

    Photo of tyre killer:



    IP67 anti crash bi directional remote control road spikes with reflective stripe
