Home ProductsHalf Height Turnstile

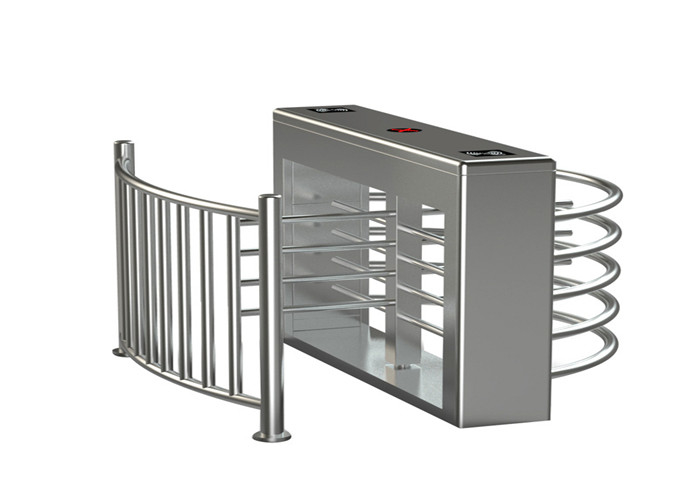

Semi Automatic 304 stainless steel entrance turnstile security gate heavy duty

Semi Automatic 304 stainless steel entrance turnstile security gate heavy duty

    • Semi Automatic 304 stainless steel entrance turnstile security gate heavy duty
    • Semi Automatic 304 stainless steel entrance turnstile security gate heavy duty
  • Semi Automatic 304 stainless steel entrance turnstile security gate heavy duty

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-HHT01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Max Flow Rate: 25 To 30 Person/ Minute Direction: Single Or Double Direction
    Material Of Housing: 304 Or 316 Stainless Steel Application: Indoor And Outdoor
    Thickness Of Housing: 1.2mm Or 1.5mm Mechanism: Heavy Duty

    Semi Automatic 304 stainless steel entrance turnstile security gate heavy duty



    Introduction of half height turnstyle:



    Half height turnstyle provides effective means for pedestrian flow control at entrances of high class communities, intelligent buildings, hotels, subway stations and other high level venues.



    Applications of Half Height Turnstile:



    It is widely used in gymnasium,tourist attraction,business building and so on,and is normally installed in the supervision area.It can satisfy different controlling requirements,and can also connect with control devices such as card readers,ticket dispensers,etc.



    Features of Half Height Turnstile:



    • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
    • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
    • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
    • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
    • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
    • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
    • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
    • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
    • Cabinet is made of 304 or 316 stainless steel.



    Specifications of half height turnstile



    Product

    Half height turnstyle

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Power consumption

    40W

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor

    No motor

    Max flow rate

    25 to 30 person per minute

    Arm length

    400mm to 500mm

    Working temperature

    -20°C~60°C



    Size of Half Height Turnstile:

    Semi Automatic 304 stainless steel entrance turnstile security gate heavy duty



    Our Service:



    1. For all your inquires about us or our products, we will reply you in detail within 24 hours

    2. We offer OEM services. Can print your own logo on the products , can customize the retail box packing and other things.

    3. Customers can come to our factory and learn how to install the flap barrier, if necessary, we can offer door-to-door service.

    4. Warranty:1 year
