Home ProductsTripod Turnstile Gate

Security space effective compact turnstile entrance gates RS 485 / TCP - IP port

Security space effective compact turnstile entrance gates RS 485 / TCP - IP port

    • Security space effective compact turnstile entrance gates RS 485 / TCP - IP port
    • Security space effective compact turnstile entrance gates RS 485 / TCP - IP port
  • Security space effective compact turnstile entrance gates RS 485 / TCP - IP port

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-TT04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 2,000 pcs per month
    Contact Now
    Detailed Product Description
    Body: Stainless Steel Arm: Stainless Steel
    Application: Indoor/outdoor With Tent Arm Length: 510mm
    Package: Carton Or Wooden Box Motor: Brush DC 24V

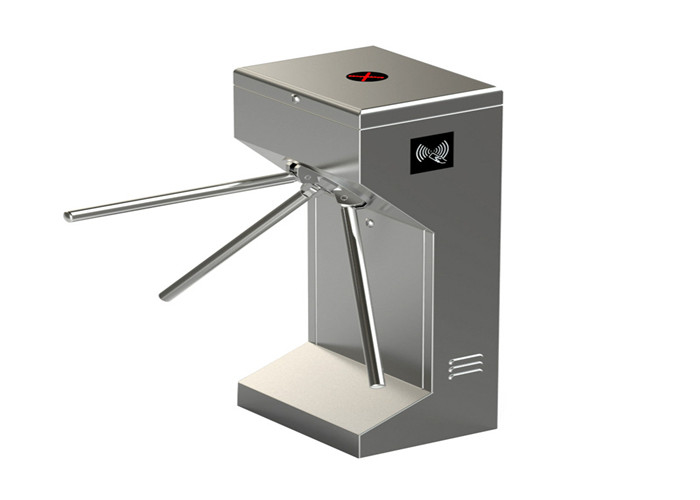

    Security space effective compact turnstile entrance gates RS 485 / TCP - IP port



    Introduction:



    The Tripod Turnstile is a Cutting Edge solution that provides a combination of reliable mechanical as well as electronic restriction for unauthorized Entrants. A Time and Attendance Reader can be integrated for Employee attendance programs via access controller.



    The advantages of using a Turnstile:



    Compared to a conventional Gate include the better utilization of manpower, turnstile can increase reliability and improved security. This mechanism allows a single employee to enter into the premises only after verification through the Access Control Module that is integrated onto the Turnstile.



    Applications:



    Various kinds of Access Control Systems manufactured by us can be integrated as per customer’s requirements. To serve the dual purpose of access control and attendance recording, the Time and Attendance Systems can also be integrated.



    Features of Tripod Turnstile Gate:



    1. It has the standard electrical interface which can be connected with various kinds of reader and writer equipment.


    2. It can self-check and alarm which will be make it convenient to use

    3. Several ways of working molds can be chosen at your request

    4. It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board

    5. Arm falling and lifting can be controlled in far distance to satisfy the special requirement of the users and the request of fire protection

    6. Arm can be lifted and fall when electricity is cut-off


    7. All the system runs stable with little noise and no mechanical impact



    8. The number of the persons who have passed by can be counted automatically which can also be displayed in LED

    9. Direction indicator to tell you which direction can go or cannot

    10.You can set the function with or without card-reading memory according to your requirement



    Specifications of Tripod Turnstile Gate:



    Turnstile type Full automatic tripod turnstile gate
    Power supply
    AC220±10%V 50Hz/AC110±10% 60Hz
    Power consumption
    50W
    Access device input voltage
    Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
    Max flow rate
    30 to 40person per minute
    Arm length
    500mm
    Working temperature
    -20°C~+60°C
    Current
    3A
    Control circuit
    DC12V
    Working humidity
    0~95%RH
    IP level
    IP44



    Product dimension:



    Security space effective compact turnstile entrance gates RS 485 / TCP - IP port
