Security Industrial enterprises Speed Gates / Intelligent Arm retractable pedestrian barriers 600mm lane

China Security Industrial enterprises Speed Gates / Intelligent Arm retractable pedestrian barriers 600mm lane supplier
Security Industrial enterprises Speed Gates / Intelligent Arm retractable pedestrian barriers 600mm lane supplier Security Industrial enterprises Speed Gates / Intelligent Arm retractable pedestrian barriers 600mm lane supplier

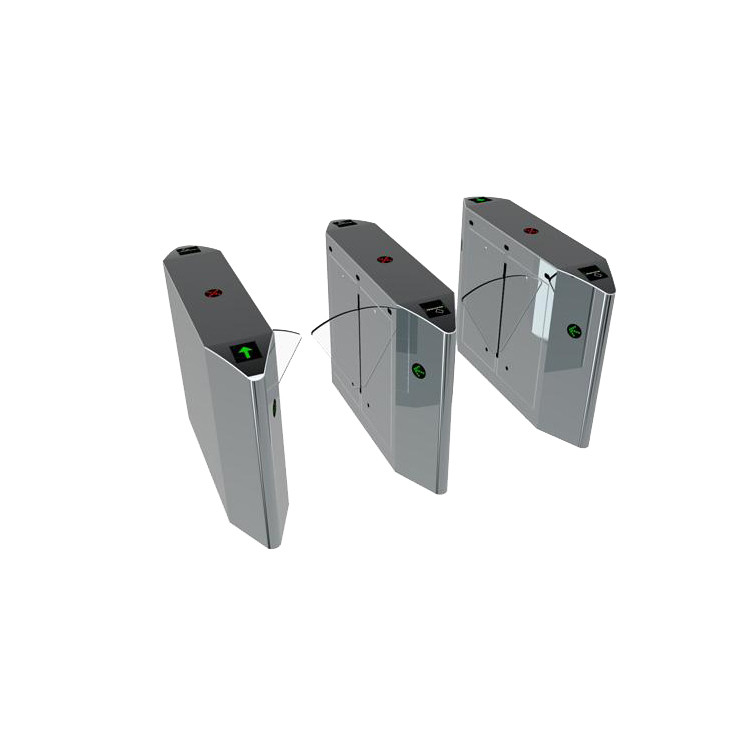

Large Image :  Security Industrial enterprises Speed Gates / Intelligent Arm retractable pedestrian barriers 600mm lane

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-FB03

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 3-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Lane: 600mm Max Flow Rate: 25 To 30 Person/minute
Flap Opening / Closing Time: 1s Working Temperature: -20°C~+60°C
Motor: DC 24V Battery: Included



Security Industrial enterprises Speed Gates / Intelligent Arm retractable pedestrian barriers 600mm lane



Key words:



swing barrier, turnstile, speed gate, half height turnstile, flap barrier, barrier gatewing barrier, swing barrier, flap barrier, security wing barrier, safety wing barrier, access wing barrier, access barrier, auto gate, arms gate, arms turnstile, rotate gate, rotate turnstile gate, arm fall turnstile gate, pedestian access gate, traffic gate, waist height turnstile, half height turnstile, full height turnstile, speed gate, entrace turnstile, entrance gate, turnstile, tripod turnstile, security turnstile, safety turnstile, turnstile gate, access control turnstile, access control gate, access gate ,eco access control, green access control, Tripod Turnstile, Security Turnstile,Waist High Turnstile,Turnstile.



Our advantages:



1.High quality,competitive price
2.Top10 Chinese Security Control products manufacturers
3.CE approved



Applications of automatic wing gate:



Sinomatic automatic wing gate are widely used in the below sites:

  • Banks, insurance companies
  • Governmental and institutional establishments
  • Office buildings, registered offices, administrative sites...
  • Schools, universities and colleges
  • Sensitive sites : military, nuclear, pharmaceutical, computer centers...
  • Airports



Features of automatic wing gate:



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function.



Specifications of automatic wing gate:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V

Max flow rate

30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C



Size drawing:

Security Industrial enterprises Speed Gates / Intelligent Arm retractable pedestrian barriers 600mm lane
