|Operational Voltage:||DC 24V||Prectection Level:||IP 44|
|Working Temperature:||-20℃ ~ +60℃||MCBF:||500 Million Times|
|Net Weight:||100KG||Housing Thickness:||1.5mm|

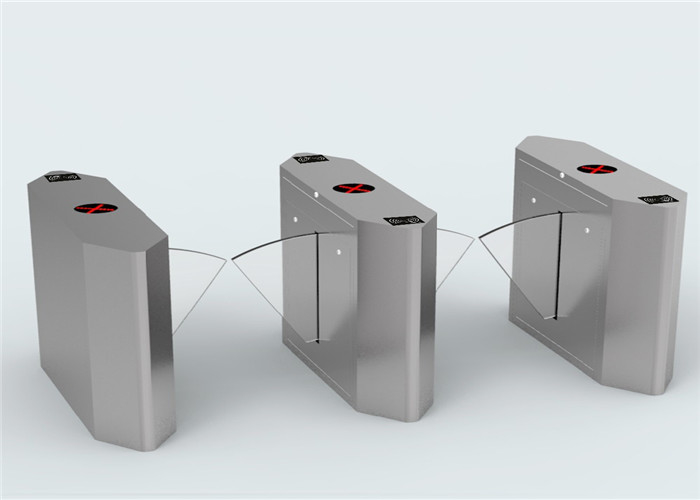

Subway entry and exit safety pedestrian turnstiles multiple lane with facial scanner
|Product:||Automatic speed gate|
|Case material||304 stainless steel|
|Dimensions||L1200 x W300 x H1000mm|
|Maximum Passage Width||600mm|
|Power Supply||AC220V±10%,50HZ/ AC110V±10%,60HZ|
|MCBF||5 million cycles|
|Transit Speed||30 persons/min|
|Operating Environment||Indoor/outdoor (Shelter)|
|Operating Temperature||-20°C ~ +60°C
1. Industrial zones
2. Administrative buildings
3. Recreation centers
4. Amusement parks
5. Financial institutions
8. Bus and railway stations
1. Power Supply: AC220V± 10V, 50Hz / AC110V± 10V, 60Hz
2. Power Consumption: 100W/24V
3. Temperature: -20 to +60 degrees
4. Humidity: < 95%, without concretion
5. Passage Width: 600mm
6. Passing Speed: 30 persons/min (normal open), 25 persons/min (normal close)
7. Arm Open/Close Time: 1s
8. Input Interface: +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
9. Material of flap: Acrylic or PU foam.
10. Material of Housing: 304 stainless steel
11. Dimension: 1200*300*980mm
Arm Length: 270mm
12. Weight: 80kgs
13. Working Environment: Indoors or outdoors with shed
Functions and Features:
1. Problem-self-checking function.
2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
8. Anti-rush function: If there is no open single, arm will be holding tightly.
9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the flap barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.
10. Flap barrier is with standard electrical interface for the integration of various access controller.
11. Flap barrier can count how many passenger has passed and will show it in the LED display.
12. Direction display to guide passenger which direction is to go.
