DC 24V motor anti jumping Flap Barrier Gate 1 second runing speed with backup battery

DC 24V motor anti jumping Flap Barrier Gate 1 second runing speed with backup battery

    • DC 24V motor anti jumping Flap Barrier Gate 1 second runing speed with backup battery
    • DC 24V motor anti jumping Flap Barrier Gate 1 second runing speed with backup battery
  • DC 24V motor anti jumping Flap Barrier Gate 1 second runing speed with backup battery

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FB03

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Access Device Input Voltage: Dry Contact Or 12V Electrical Level Signal Direction: Can Be Set As Single Or Double
    Flap Material: Plexiglass Photocell: 4 Pairs
    Net Weight: 90KG Working Environment: Indoors Or Outdoors With Shed



    DC 24V motor anti jumping Flap Barrier Gate 1 second runing speed with backup battery



    Introduction of Flap Turnstile Gate:

    Flap Barrier is an upgraded products from tripod turnstile and swing barrier. It has standard electrical interface which can be connected with ID cards, IC cards, magnetic cards, barcode cards etc. The integration system ensures passing in order and will never allow unauthorized persons to go in or go out.



    Sinomatic flap turnstile gates are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation, traffic lights, command console, alarm system against unauthorised entries.



    Applications of Flap Turnstile Gate:



    Professional flap turnstile gate is your ideal choice for entrance control and widely applied in:Community, school, bank, seabeach, shopping center and so on.

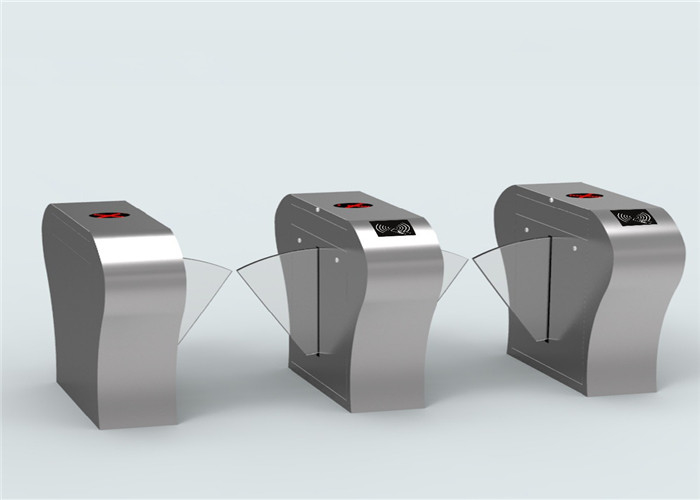

    Product photo:

    DC 24V motor anti jumping Flap Barrier Gate 1 second runing speed with backup battery



    Features of Flap Turnstile Gate:



    1. Problem-self-checking function.
    2. Many options of working ways: bi-direction card reading; one direction card reading and another no reading; one direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
    3. When power off, arm open automatically and power on again, arm will be held automatically.
    4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
    5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
    6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the flap barrier and then take a valid card to be read for passing.
    7. Flap barrier is with interface for system integrator.
    8. Anti-rush function: if there is no open single, arm will be holding tightly.
    9. Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.When passenger is going through the flap barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.
    10. Flap barrier is with standard electrical interface for the integration of various readers and writers.
    11. Direction display to guide passenger which direction is to go.
    12. Stable running with little noise.



    Specifications of Flap Turnstile Gate:



    ITEM

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor voltage

    DC 24V (brush motor)

    Max flow rate

    25 to 30 person per minute

    Flap opening / closing time

    1s

    Reset time when power on

    3s

    Working temperature

    -20°C~+60°C



    Case of Flap Turnstile Gate:



    DC 24V motor anti jumping Flap Barrier Gate 1 second runing speed with backup battery
