Computer spray powder coating heavy duty private Car Parking Lock with one year warranty
  • Computer spray powder coating heavy duty private Car Parking Lock with one year warranty
  • Computer spray powder coating heavy duty private Car Parking Lock with one year warranty
  • Computer spray powder coating heavy duty private Car Parking Lock with one year warranty
  • Computer spray powder coating heavy duty private Car Parking Lock with one year warranty

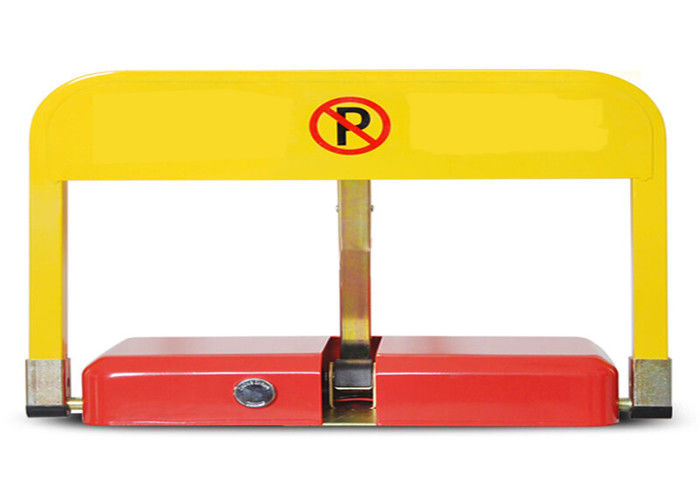

Computer spray powder coating heavy duty private Car Parking Lock with one year warranty

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-PL03
Product Details
RATED VOLTAGE:
DC 6V
RISING TIME:
≤5s
FALLING TIME:
≤4s
HEIGHT AFTER RISING:
370mm
HEIGHT AFTER FALLING:
70mm
STRUCTURE:
TRIANGLE
High Light:

remote control parking lock

,

car parking space protector

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, , L/C, D/A, D/P
Supply Ability
10000 pcs per month
Product Description

Computer spray powder coating heavy duty private Car Parking Lock with one year warranty



Computer spray powder coating heavy duty private Car Parking Lock with one year warranty 0



Technical parameters:



STRUCTURE TRIANGLE LOCKING

RATED VOLTAGE

DC6V

STANDBY CURRENT

≤0.9mA

WORKING CURRENT

≤0.8A

RISING TIME

≤5s

FALLING TIME

≤4s

HEIGHT AFTER RISING

370mm

HEIGHT AFTER FALLING

70mm

CONTROL DISTANCE

≤20m

ENVIRONMENT TEMPERATURE

-30°~+60°

DIMENSIONS

 490mm×470mm×70mm

GROSS WEIGHT

8KG



Product Details:

Computer spray powder coating heavy duty private Car Parking Lock with one year warranty 1 Computer spray powder coating heavy duty private Car Parking Lock with one year warranty 2





Product Features:



1. IP 67: The IP protection level is 67, which can fully prevent dust and water from entering inside.

The parking lock can endure a rolling of a 3 tons vehicle under the falling status.



2. Anti-kick: Support surface adopts triangle structure, can effectively prevent human deliberately change arm cocked state.



3. Anti-Theft: The position of the foundation for parking lock and ground installation will be protected by a large external cover. The cover can only be opened by the user.



4. Pressure resistance: The parking lock can endure a rolling of a 3 tons vehicle under the falling status.



5. Power: power supply optional, DC6V re-chargeable batteries or 4 pieces of D size alkaline batteries.



6. Power connection indication: When 6V power connected, indicator light will flash for 3 seconds and with a sound alarm.



7. Code settings for remote controller: After power on, within 3 seconds, user must press the RISE and DOWN button of the remote control separately. The alarm will sound twice meaning the remote code has been set.



8. Code clearance: Keep pressing the built-in touch switch till there is frequent alarm, the original code is cleared.



9. Reset function: When the arm meets external force during ascent, it will automatically switch the motor rotating direction to avoid damage.





Computer spray powder coating heavy duty private Car Parking Lock with one year warranty 3



Computer spray powder coating heavy duty private Car Parking Lock with one year warranty 4
