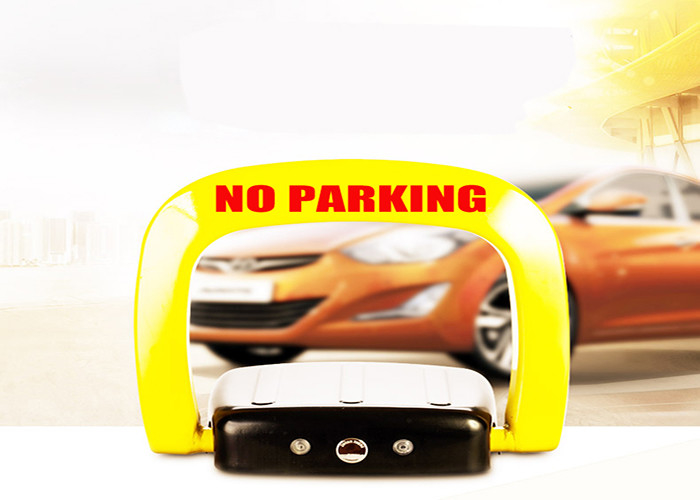

Auto Car Parking Lock , IP 67 parking space protector DC 6 volt

Certification
Good quality Flap Barrier Gate for sales
Good quality Flap Barrier Gate for sales
You products have a nice design and competitive price,I like it very much, will give you more orders in the future !

—— Finn Nielsen in Denmark

It is my pleasure to do the business with Shenzhen Sinomatic Technology Co. Ltd, they always do the best for us.

—— Jessica Laux in Germany

I'm Online Chat Now

Auto Car Parking Lock , IP 67 parking space protector DC 6 volt

China Auto Car Parking Lock , IP 67 parking space protector DC 6 volt supplier
Auto Car Parking Lock , IP 67 parking space protector DC 6 volt supplier Auto Car Parking Lock , IP 67 parking space protector DC 6 volt supplier

Large Image :  Auto Car Parking Lock , IP 67 parking space protector DC 6 volt

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE
Model Number: SN-PL02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 3-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, , L/C, D/A, D/P
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
BATTERY: D Size Battery WORKING CURRENT: ≤0.8A
RISING TIME: ≤4s FALLING TIME: ≤3s
HEIGHT AFTER RISING: 400mm HEIGHT AFTER FALLING: 86mm



Auto Car Parking Lock , IP 67 parking space protector DC 6 volt





Auto Car Parking Lock , IP 67 parking space protector DC 6 volt





Technical parameters:



RATED VOLTAGE

DC6V

STANDBY CURRENT

≤1mA

WORKING CURRENT

≤0.8A

RISING TIME

≤4s

FALLING TIME

≤3s

HEIGHT AFTER RISING

400mm

HEIGHT AFTER FALLING

86mm

CONTROL DISTANCE

≤20m

ENVIRONMENT TEMPERATURE

-30°~+60°

DIMENSIONS

 430mm×440mm×86mm

GROSS WEIGHT

10kg



Product Features:







  • Reset function: When the rocker arm meets external force during ascent, it will automatically switch the motor rotating direction to avoid damage.



  •  Low power indication: When battery power drops to 5.0V, if user press the remote control, the arm still action but with indicator light flashing and intermittent sound alarm. Time for replace the batteries.



  • Power shortage indication: When the battery voltage drops to 4.2V , the arm will automatically low down, if user press the remote control, the arm will not action, the indicator light flashes slowly with intermittent sound alarm. Time for replace the batteries.



  • Pressure Resistance: The parking lock can endure a rolling force of 200kg under the falling status without being damaged.



  • Self locking: When the parking lock is at horizontal and vertical status, no one else can make permanent change on the status except the user.



  • Theft Protection: The position of the foundation for parking lock and ground installation will be protected by a large external cover. The cover can only be opened by the user.



  • Manual control: In situation of power outage or the parking lock fails, but need to lower the arm, user can open the cover with the key and dismantle the shaft screw of the putter and low down the arm.



  • Sealing: The IP protection level is 67, which can fully prevent dust and water from entering inside.



  • Power: 4 pieces of D size alkaline batteries make it charge-free and easy to replace. Under normal use, original battery can be used for nearly one year.



  • Power connection indication: When 6V power connected, indicator light will flash and with a sound alarm.



  • Code settings for remote controller:After power on, within 5 seconds, user must press the RISE and DOWN button of the remote control separately. If the indication light flashes twice and the sound alarm rang twice, the remote code has been set.



  • Code clearance: Keep pressing the built-in touch switch till there is frequent blinking and alarm, the original code is cleared.



  • External force alarm : The arm at vertical position, if front and rear direction undertake a certain force, when the arm reaches a certain angle, there will be alarm. When the external force is removed , the arm will return back.
