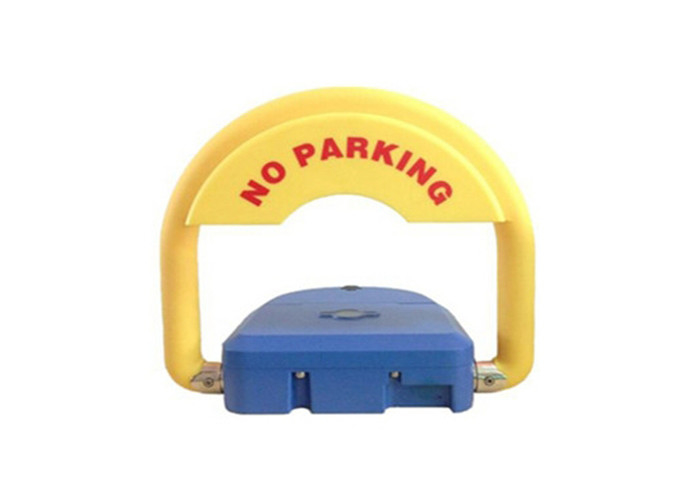

Intelligent Car Parking Barrier IP68 with Recharge Champion Brand Battery

Intelligent Car Parking Barrier IP68 with Recharge Champion Brand Battery

    • Intelligent Car Parking Barrier IP68 with Recharge Champion Brand Battery
    • Intelligent Car Parking Barrier IP68 with Recharge Champion Brand Battery
    • Intelligent Car Parking Barrier IP68 with Recharge Champion Brand Battery
  • Intelligent Car Parking Barrier IP68 with Recharge Champion Brand Battery

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-PL01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 3-7 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram, , L/C, D/A, D/P
    Supply Ability: 5000 pcs per month
    Contact Now
    Detailed Product Description
    Battery Brand: Champion Battery Voltage: DC12V, 7Ah
    Dimension: 357*370*82.5mm Current: 0.4A
    Rising Time: 4-6S Lowering Time: 4-6S



    Intelligent Car Parking Barrier IP68 with Recharge Champion Brand Battery



    Product Introduction:



    The parking lock is widely used in car parking management in areas like high-end residences, shopping malls, hotels, airports and other commercial places.



    The cabinet of the parking lock is coated with high-class varnish with features of glossiness and fast color. The product has attributes like beautiful and novel structure designing, user-friendly, diversified functions, safe and durable operation.



    Size:

    Intelligent Car Parking Barrier IP68 with Recharge Champion Brand Battery



    Technical parameters:



    STANDARD VOLTAGE

    DC12V

    BATTERY VOLTAGE

    DC12V, 7AH

    DIMENSION

    357*370*340MM

    OPERATION CURRENT

    0.4A

    RUNNING TIME

    4S TO 6S

    REMOTE CONTROLLED DISTANCE

    ≤15m

    WORKING TEMPERATURE

    -35℃~+55℃

    MAX BEARING WEIGHT

    5 TONS

    PROTECTION GRADE

    IP68

    NET WEIGHT

     9.5KG



    Product Features



    1. Energy-saving; the battery is a best product in China, power can last for half a year.


    2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the
    battery causing short circuit; battery installation is easy.


    3. Durable; the cabinet is made of die-casting Zinc alloy with high quality, and the maximum
    weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and
    anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not
    deform even after car crushing.


    4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and
    dust-proof. It can be used broadly.


    5. Intelligent self re-positioning; the external force could not change the sway arm position when
    it is vertical; when the sway arm is forced to a horizontal position, it will re-position vertically,
    unless the user uses remote control to put it horizontally.


    6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial
    for battery and motor longevity and lesser friction.


    7. Burglarproof; the mounting bolts are placed inside of the cabinet and without key, no one can
    open it.


    8. Installing friendly: four prepared holes at the bottom of the cabinet makes it easy to install.



    Product Application


    1, when there is no car in the parking stall, the parking lock will rise up to its highest position


    2, when there is a car in the parking stall, the parking lock will fall down to its lowest position


    3, if remote controller is needed, firstly you need to cut off the power and wait for three seconds;
    secondly you should plug in power again, when the red light is on, press two buttons of controller
    at the same time. At this moment, both red light and green light will be on, after the red is off, you
    can the remote controller


    4, if you want to control the parking lock in the car, you need to put it in the front of the
    windscreen, and press the button for 1 or 2 seconds.
