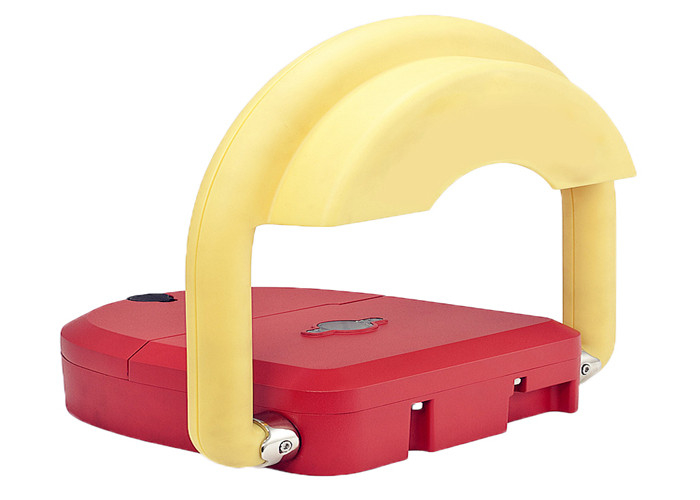

Dust proof 180 degree crashproof Car Parking Lock for vehicle control

China Dust proof 180 degree crashproof Car Parking Lock for vehicle control supplier
Dust proof 180 degree crashproof Car Parking Lock for vehicle control supplier Dust proof 180 degree crashproof Car Parking Lock for vehicle control supplier

Large Image :  Dust proof 180 degree crashproof Car Parking Lock for vehicle control

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-PL01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 3-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, , L/C, D/A, D/P
Supply Ability: 5000 pcs per month
Contact Now
Detailed Product Description
Battery Voltage: DC12V, 7Ah Dimension: 357*370*82.5mm
Current: 0.4A Rising Time: 4-6S
Protection Grade: IP 68 Max Bearing Weight: 5 Tons



Dust proof 180 degree crashproof Car Parking Lock for vehicle control



Product Application


1, when there is no car in the parking stall, the parking lock will rise up to its highest position


2, when there is a car in the parking stall, the parking lock will fall down to its lowest position


3, if remote controller is needed, firstly you need to cut off the power and wait for three seconds;
secondly you should plug in power again, when the red light is on, press two buttons of controller
at the same time. At this moment, both red light and green light will be on, after the red is off, you
can the remote controller


4, if you want to control the parking lock in the car, you need to put it in the front of the
windscreen, and press the button for 1 or 2 seconds.



Packing included



Dust proof 180 degree crashproof Car Parking Lock for vehicle control







Technical parameters:



BATTERY VOLTAGE

DC12V, 7AH

DIMENSION

357*370*340MM

OPERATION CURRENT

0.4A

RUNNING TIME

4S TO 6S

REMOTE CONTROLLED DISTANCE

≤15m

WORKING TEMPERATURE

-35℃~+55℃

MAX BEARING WEIGHT

5 TONS

PROTECTION GRADE

IP68

GROSS WEIGHT

 10KG



Product Features



1. Energy-saving; the battery is a best product in China, power can last for half a year.


2. Safe; the power connection is anti-disconnecting design in case that the user misplaces the
battery causing short circuit; battery installation is easy.


3. Durable; the cabinet is made of die-casting Zinc alloy with high quality, and the maximum
weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and
anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not
deform even after car crushing.


4. Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and
dust-proof. It can be used broadly.


5. Intelligent self re-positioning; the external force could not change the sway arm position when
it is vertical; when the sway arm is forced to a horizontal position, it will re-position vertically,
unless the user uses remote control to put it horizontally.


6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial
for battery and motor longevity and lesser friction.


7. Burglarproof; the mounting bolts are placed inside of the cabinet and without key, no one can
open it.


8. Installing friendly: four prepared holes at the bottom of the cabinet makes it easy to install.



Product Warranty


1, according to the regulation of the Consumer Protection Law, our company solemnly promises
that, the following services are provided to our customers with the invoice and warranty card at
hands: from the date when you have bought this product, one year of free maintenance is provided
except for the battery.


2, the following cases are out of free maintenance or replacement:
A, the product is damaged by inappropriate delivery, installation or usage;
B, the product is damaged by disassembling at your own discretion;
C, the product is damaged by your failing to observe the instruction of our product manual
D, the product has no invoice and warranty card, or the invoice is unilateral amendment
E, the product is damaged by force majeure


3, our company is still happy to provide services for you, even though your specific case is out of
our free maintenance range
