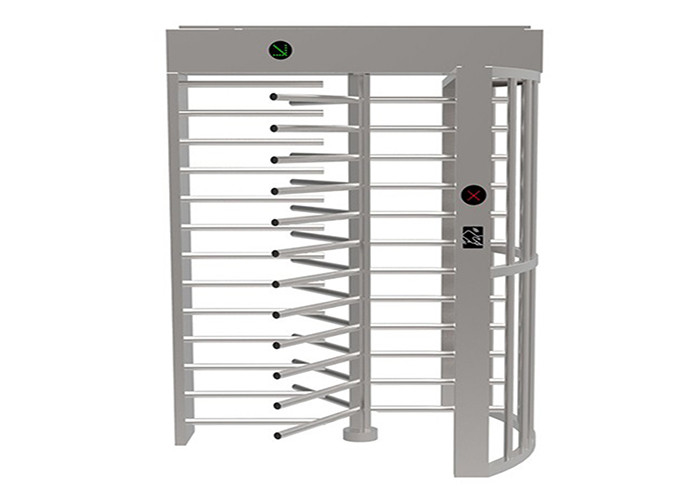

Fingerprint reader Full Height Turnstile double entrance Turnstyle Gates OEM outdoor

China Fingerprint reader Full Height Turnstile double entrance Turnstyle Gates OEM outdoor supplier
Fingerprint reader Full Height Turnstile double entrance Turnstyle Gates OEM outdoor supplier Fingerprint reader Full Height Turnstile double entrance Turnstyle Gates OEM outdoor supplier

Large Image :  Fingerprint reader Full Height Turnstile double entrance Turnstyle Gates OEM outdoor

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE
Model Number: SN-FHT01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 2700 to 3000 / SET
Packaging Details: CARTON/WOODEN
Delivery Time: 7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month
Contact Now
Detailed Product Description
Power And Voltage: AC 220V/ AC110V ± 10% Communication Interface: Dry Contact / RS485 / RS232
Pass Speed: 20 ~ 30 Person Per Min Thickness Of Housing: 1.2 Or 1.5mm
OEM/ODM: Supported Rated Power: 30W(normally Open)



Fingerprint reader Full Height Turnstile double entrance Turnstyle Gates OEM outdoor



General Description​:



This full height turnstile is built with high quality material to withstand outdoor usage for years to come.



Semi auto turnstile operation is based on solenoid lock that allows blocking rotation direction.



Full height turnstile can effective control single pass through each time. It can achieve maximum access security control. Users are not able to crawl underneath or climb over to gain unauthorized access into premise.



Easy integration with any third party access control or ticketing via dry contact interface



Fingerprint reader Full Height Turnstile double entrance Turnstyle Gates OEM outdoor



Main Features:



1. Anti-tailgating. Smart lock mechanism uses limit switch to detect rotation and effectively re-lock back after arm has been rotated more than half. Therefore current user can only finish the rotation to pass through or reverse the rotation to exit. Either way, it will not allow second person to pass through again.


2. Turnstile can be configured to be bi-directional or uni-directional.



3. Easy integration with any third party access control or ticketing via dry contact interface. it will unlock and allow arm rotation upon receiving valid dry contact from electronic access system.


4. If arm is rotated more than half, it will automatically fall forward to complete the rotation. If arm is rotated less than half, it will automatically fall backward to return to home position.This will avoid arm does not stop halfway that may allow unauthorized access.



5. Memory function. Memory will record the sequence of passing (same or opposite direction). Passing request will be executed according to the sequence recorded.



6. During power failure the system will unlock the arms. User can manually push the arms for free passage. This allows convenient evacuation of people inside the premise.



7. Minimun maintenance. The housing is made of high quality stainless steel, and all the internal parts are with antirust and antiseptic treatment to achieve high level of durability.



Product dimension:

Fingerprint reader Full Height Turnstile double entrance Turnstyle Gates OEM outdoor

Production line:

Fingerprint reader Full Height Turnstile double entrance Turnstyle Gates OEM outdoor



Structure parameter:



Housing material: 304 grade stainless steel
Housing dimension: 1630×1230×2300 (mm)
Surface treatment: brushed finish
Arm’s material: 304 grade stainless steel
Arm's length 550mm(default)
Lane width: 600mm(default)
Arm's OD: 38 mm (default) 48 mm (max)





Case reference:



Fingerprint reader Full Height Turnstile double entrance Turnstyle Gates OEM outdoor
