|Access Device Input Voltage:||Dry Contact/relay Signal||Application:||Indoor/outdoor With Tent|
|Material Of Cabinet:||304 Stainless Steel||Flap Length:||275mm|
|Passage Witdh:||600mm||Max Flow Rate:||30 To 40 Person Per Minute|

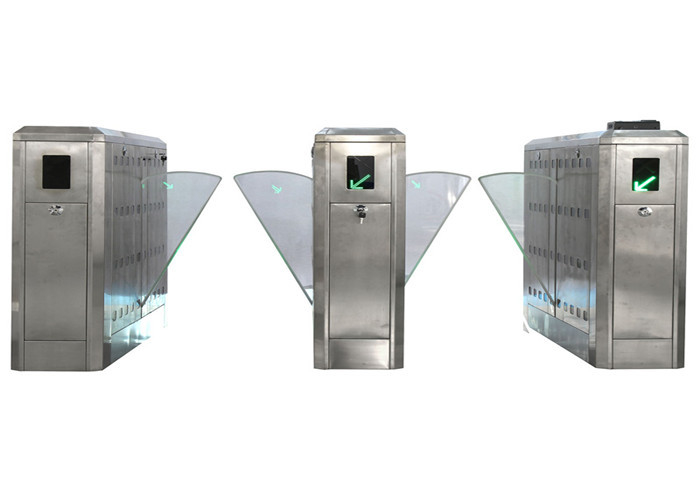

600mm Retractable Bi directional Flap Barrier Gate WITH high sensitivity infrared photocell
SN-TY201 is a brand new product of Sinomatic. Flap barrier, as the upgraded version of the
tripod turnstile and swing barrier, is a hi-tech product for pedestrian access control.
Flap barrier is the combination of machinery, electronic, CPU control and variety of personal
authentication identification technology. IC card, ID card, code bar, and fingerprint identification unit are compatible with the flap barrier.
Flap barrier motor can be classified into single motor and double motors. The single one is used for single
lane and the double one is used for multi- lanes.
This flap barrier are suitable for indoor application only. It is NOT suitable to be installed outdoor or near sea side. Precise craftsmanship, comprehensive functions and high technology.
It always install in high class communities, intelligent buildings, hotels, subway stations and other high level venues.
1. It adopt the integration of machinery and electronic structure, with special drive style, stable and reliable machinery auto locking solution, precise worm gear, and cabinet composite structure.
2. Infrared photocells to detect abnormal access, and flap system will stay locked if not receiving authorized signal. Auto-alarm will activate for unauthorized access.
3. Auto-reversing function. Flap gate will auto reverse when meeting exterior force to protect motor and
also minimize the damage dealt to user.
4. Time-out protection. When the flaps open and no person pass through, the system will automatically
close after fixed time passes.
5. During power failure, flaps will automatically retract and allowing free pass through. Automatically close
back after power supply recover
6. Pedestrian flow directions can be single or double directions. Available for two-way traffic lights, which
can prompt the state pass or no-entry.
7. LED indicator function. Traffic lights on both sides of the flap barrier are the indicator of access status,
When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights
on both sides can be set to indicate access for left or right or bi-direction.
|Cabinet dimension||1400mm (L)*300mm (W)*1003mm (H)|
|Stretching-out flap length||275mm|
|Cabinet material||# 304 stainless steel|
|Power supply||AC220±15%V 50Hz/ AC110±15%V 60Hz|
|Motor voltage||DC 12V (brush motor)|
|Access device input voltage||dry contact or 12V electrical level signal or ＞
100ms12V impulse signal or driving current ＞
|Max flow rate||30 to 40 people per minute|
|Flap opening/closing time||0.5s|
|Reset time when power on||3s|
