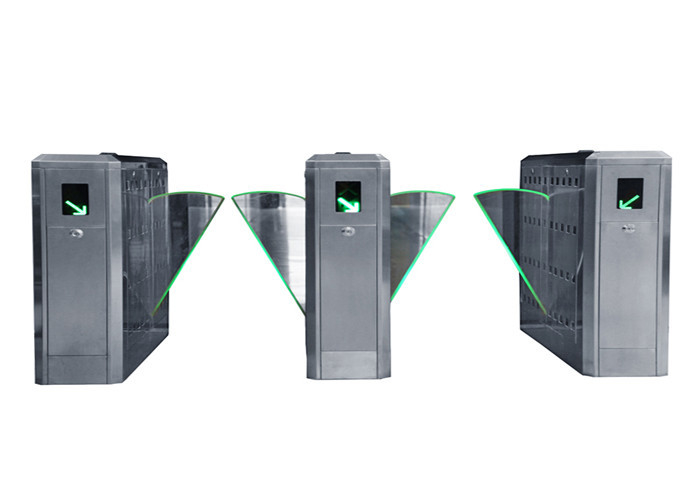

Pedestrian control Flap Barrier Gate 0.5 second fast speed with reliable mechanism

Pedestrian control Flap Barrier Gate 0.5 second fast speed with reliable mechanism

    • Pedestrian control Flap Barrier Gate 0.5 second fast speed with reliable mechanism
    • Pedestrian control Flap Barrier Gate 0.5 second fast speed with reliable mechanism
  • Pedestrian control Flap Barrier Gate 0.5 second fast speed with reliable mechanism

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-TY201

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Certificate: CE LED Display: Yes
    Infrared Photocell: Yes Auto Reverse: Supported
    Auto Close: Supported Flap Material: Clear Acrylic



    Pedestrian control Flap Barrier Gate 0.5 second fast speed with reliable mechanism



    General description:



    It is an innovative pedestrian control technology that designed to achieve best balance quality, performance and affordability.


    It provides a combination of reliable mechanical as well as electronic retriction for unauthorized visitor while still maintain a welcoming atmosphere. Access control and time attendance reader can be integrated into flap barrier to improve accuracy of reporting.



    Application:



    It is ideal indoor solution for railway platform, passenger terminal, ferry, airports, checkpoints, factories,
    stadium, lift lobby of commercial, industrial or government building. Flap barrier give a more premium and organized entrance to your building.



    Features:


    1. Faster opening
    Flap barrier support up to 0.5 sec opening / closing time. This allow higher pass throught traffic rate and
    effectively reduce long queue in front of entrance/exit door during peak hour.



    2. Designed to be safe

    • Flap will only close after all IR sensor confirmed that the pedestrian has finished passing through. This ensure flap will not crush onto a pedestrian.
    • During power failure, flap will automatically open by itself to allow free passage for emergency escape. Flap will automatically close back when power resume.
    • Inteligent sensor will auto reverse the flap if there is a sudden incoming obstacle while the flap is closing. Flap will also auto reverse if there is something blocking the flap to avoid motor overload and damage itself.

    3. Auto close timer
    Flap will auto close if there is no pedestrian passing through after the delay time elapsed. This will avoid
    unauthorized user from sneaking into the building when flap was opened wrongly. The delay time can be
    preset in control panel.



    4. Alarm detection
    Built in high sensitivity infrared photocell to detect unauthorized and abnormal access. Alarm will sound and red light to alert security guard. Flap shall remain securely locked if it did not receive any authorized signal from access control system.



    5. LED display indicator

    LED display at front and back can be set to display correct passage direction once activated. This ensure pedestrian go into the correct lane when multiple flap barrier is installed side by side. Display can show “X” if no access is permited.



    Specification:

    Voltage AC220 ± 15V 50Hz
    AC110 ± 15V 60Hz
    Frequency 50/60Hz
    Control circuit DC12V
    Consumption 30W
    Passing speed 30-40 person per minute
    Working temperature -25°C~+55°C
    Pretection grade IP44
    Communication socket RS232 Standard socket/ LAN socket



    Size:



    Pedestrian control Flap Barrier Gate 0.5 second fast speed with reliable mechanism
