304 Stainless steel waist height Pedestrian Swing Gate with clear acrylic arm

304 Stainless steel waist height Pedestrian Swing Gate with clear acrylic arm

    • 304 Stainless steel waist height Pedestrian Swing Gate with clear acrylic arm
    • 304 Stainless steel waist height Pedestrian Swing Gate with clear acrylic arm
  • 304 Stainless steel waist height Pedestrian Swing Gate with clear acrylic arm

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-SB01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Body Shape: Pillar Arm Material: Crystal Acrylic Flap
    Application: Indoor/outdoor With Tent Aterial Of Housing: 304 Or 316 Stainless Steel
    Direction: Bi-directional Traffic Rate: 25 To 30 Person Per Minute



    304 Stainless steel waist height Pedestrian Swing Gate with clear acrylic arm





    General Description:



    Sinomatic swing barrier SN-SB01 is an automatic motorized stainless steel tubular swing barrier. It has smallest installation footprint while offering widest opening clearance to allow big boxes, trolley,wheelchair, baby stroller or user with big luggage to pass through with comfort. Swing barrier compact size help to save space and can fit into narrow places.



    Application:



    It is typically used together with flap barrier or turnstile as manual lane for handicapped user or user with big luggage. It is suitable for low traffic light duty application.
    It is better for indoor usage, for outdoor usage, need to have shelt or tent overhead.





    Features:



    1. Support bi-directional opening


    2. Can integrate with access control system.

    • Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
    • Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.

    3. During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.



    Specifications of Pedestrian Swing Gate:





    Description Parameter
    Cabinet dimension 168mm (Diameter) x 1050mm (H)
    Working temperature
    -20°C~+60°C
    Operating voltage
    DC 24V
    Power supply input
    AC220±10%V 50Hz/AC110±10% 60Hz
    Optimal flow rate
    25 to 30 person per minute
    Arm lenght
    600mm (default)
    Current
    3A
    Motor type
    brushless DC servo motor
    Openning or closing time
    less than 2S
    Reset time when power on
    3S





    Product size:



    304 Stainless steel waist height Pedestrian Swing Gate with clear acrylic arm

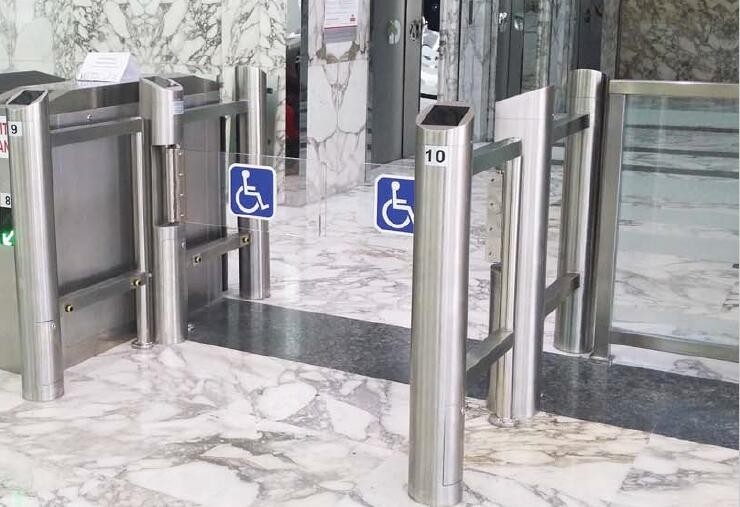

    Site Implementation



    304 Stainless steel waist height Pedestrian Swing Gate with clear acrylic arm
