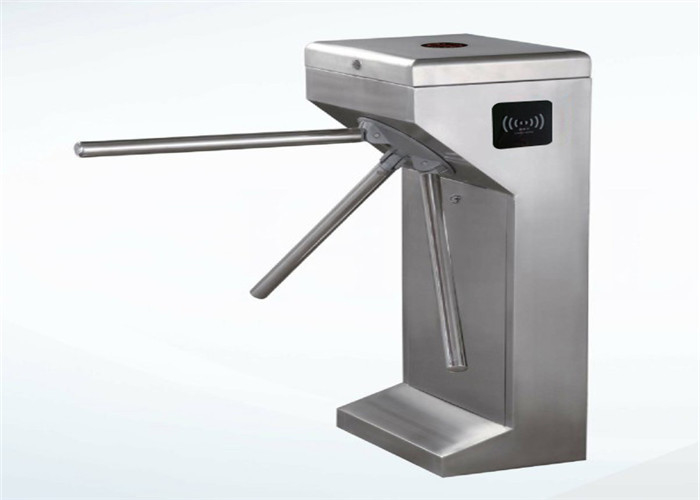

Optimized bus station pedestrian turnstile gate waist high automatic tripod turnstile barrier

China Optimized bus station pedestrian turnstile gate waist high automatic tripod turnstile barrier supplier
Optimized bus station pedestrian turnstile gate waist high automatic tripod turnstile barrier supplier Optimized bus station pedestrian turnstile gate waist high automatic tripod turnstile barrier supplier

Large Image :  Optimized bus station pedestrian turnstile gate waist high automatic tripod turnstile barrier

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE
Model Number: SN-TT01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3,000 pcs per month
Contact Now
Detailed Product Description
Traffic Flow: Up To 30 Person Per Minute Arm Lenght: 510mm
Material Of Housing: 304 Or 316 Stainless Steel Application: Indoor/outdoor With Tent
Thickness Of Housing: 1.2mm Or 1.5mm Control Input: Dry Contact/relay Signal



Optimized bus station pedestrian turnstile gate waist high automatic tripod turnstile barrier



General description:



Sinomatic triopd turnstile SN-TT01 is an electro mechanical turnstile. Its unique mechanical drive design allows the

arm to be pushed effortlessly and auto-rotate back without any expensive electric motor.

Sinomatic triopd turnstile SN-TT01 can effectively control high volume human traffic (up to 30 people per minute) while still maintaining a welcoming atmosphere. They can easily be integrated with any electronic system for ticketing, ESD, RFID access control or time attendance system (access controller needed).



Applications:



Sinomatic triopd turnstile SN-TT01 is better for indoor application. If needed to be installed outdoor, must with tent or shelter.

They are optimized economical solution for railway, bus station, factory, colleges, commercial building, stadium, game park, banks and etc.



Dimensions:



Optimized bus station pedestrian turnstile gate waist high automatic tripod turnstile barrier



Installation diagram:



Optimized bus station pedestrian turnstile gate waist high automatic tripod turnstile barrier



Features:



1. Mechanical drive unit eliminate the use of expensive electric motor and reduce maintenance cost.



2. Lock mechanism is based on heavy duty solenoid to ensure longer life time and lesser maintenance.



3. Turnstile can be configured to be bi-directional or uni-directional.



4. Built in acrylic or plastic plate for easy integration with other devices.



5. If arm rotate more than half, It will auto-rotate to the next idle position If arm rotated less than half, it will
auto-rotate back to the current idle position.


6. Built in adjustable tension spring to control auto-rotate force of arm and minimize auto-rotation.


7. DC operation, built in circuit breaker to protect against mild electric surge.


8. Anti-tailgating. Smart lock mechanism uses limit switch to detect rotation and effectively re-lock back
after 1 person pass through. Also support time delay 5 sec, 10 sec, 15 sec and 60 sec.


9. During power failure, arm will drop automatically allowing free pass through.


10. Internal parts inside the housing are locked via a key to avoid tampering.


11. Built in LED to indicate direction.


12. Once unlock, arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.



Technical Specifications of Tripod Turnstile Gate:



Description
Parameter
Power Supply Input
AC230 ± 10V
Power Voltage
24 V DC
Power Consumption During Idle
AC : 0.07 Amp DC : 0.16 Amp
Power Consumption During operation
AC : 0.02 Amp DC : 0.72 Amp
Passage width
60 cm
Response Time
0.3 second
Pass Speed
25 to 30 person per minute
Housing / Arm
Stainless Steel
Internal Mechanism
Mild Steel
Arm Disc
Alloy chromed
Working temperature
-25 ℃ to + 55 ℃
