140W Automatic Parking Barriers , Parking Lot Gate Systems With Arm Swing Out
| Place of Origin | Shenzhen, China. |
|---|---|
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-BG130-DC |
| Minimum Order Quantity | Sample order accepted |
| Price | negotiable |
| Packaging Details | Carton/Plywood box/Pallet |
| Delivery Time | 5-10 working days after payment received |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 3,000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Red, Yellow, Grey | Product Name | Barrier Gate, Traffic Barrier, Auto Gate, Toll Gate |
|---|---|---|---|
| Arm Type | Straight, Folding And Fencing Are Available | Working Temperature(motor) | -35℃~+85℃ |
| Warranty | 1 Year | Voltage | 220V/110V ±10%, DC24V |
| High Light | remote control car parking barrier,parking lot barrier gates |
||
Product Description
140W Automatic Parking Barriers , Parking Lot Gate Systems With Arm Swing Out
Technical parameters
1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
11 IP Degree:IP44
12 Max length of arm:6M

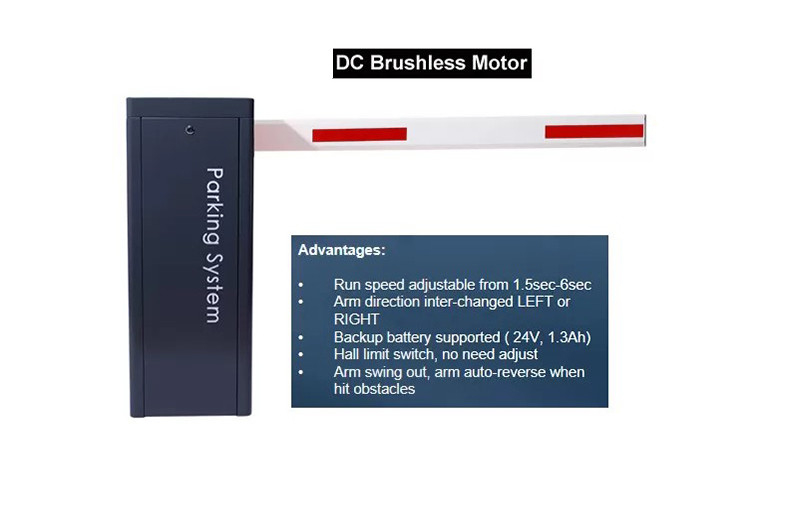

PRODUCT PHOTO
Features and functions
1 The running speed can be adjusted from 1.5s to 8s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
12Auto-delay when closing(adjustable)
13 RS485 or CAN network communication interface(no need to install module)
14 Counting interface
15 24V backup battery interface(Can be charged by using solar energy)
Arm length speed comparison table
| Menu code | Number | Menu code name | Defaults | unit | Remarks |
| H00-00 | 25-95 | Open speed adjustment | 40 | Corresponding PWM duty cycle 25%-95%, step size is 1 | |
| H00-01 | 25-95 | Close speed adjustment | 40 | Corresponding PWM duty cycle 25%-95%, step size is 1 | |
| H00-02 | 5-40 | Open in place decelerate angle | 35 | The larger the angle value, the less likely it is to shake the arm when it is in place. | |
| H00-03 | 5-40 | Close in place decelerate angle | 35 | The larger the angle value, the less likely it is to shake the arm when it is in place. | |
| H00-04 | 1-20 | Open accelerate adjustment | 10 | ms | The smaller the number, the faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 10 | ms | The smaller the number, the faster the speed |
| H00-06 | 1-30 | Open in place angle | 2 | degree | step size is 1 |
| H00-07 | 1-30 | Open in place angle | 1 | degree | step size is 1 |
| H00-08 | 7-13 | Auto reverse force adjustment | 10 | A | step size is 1 |
| H00-09 | 0-90 | Delay closing adjustment | 0 | Sec | step size is 100；0 is not closing automatically,,Other value will be closing automatically;This parameter is for when there is no loop detector signals and non-automatic operation occasions |
| H00-10 | 10-50 | Self-check speed adjustment | 30 | Corresponding PWM duty cycle 10%-50%, step size is 1 | |
| H00-11 | 0-2 | Self-check mode | 0 | 0:no operate automatically；1:operate automatically,remove after power off；2:operate automatically,Power failure memory | |
| H00-12 | 0-5 | Self-lock force adjustment(Invalid) | 3 | ||
| H00-13 | 1-20 | Motor deceleration time when paused | 5 | The larger the setting, the longer the pause time will take | |
| H00-14 | 0-1 | The default direction of operation after self-test | 0 | 0:Closing,1:opening | |
| H00-15 | 1-10 | Number of pole pairs(Invalid) | 4 | Only used to correctly display motor speed values | |
| H00-16 | 1-32 | RS485communication address | 1 | Up to 32 slaves can be connected | |
| H00-17 | 0-2 | RS485communication rate | 0 | 0:9600,1:19200,2:38400；Change the parameter and will be valid after power on again. | |
| H00-18 | 0-1 | If self-test after power is on | 1 | 0:no self-test after power on,1:self-test after power on | |
| H00-19 | 0-3 | Manual self-test adjustment | 2 | 0:Manually invalid,1:Keyboard SET button,2:remote control valid,3,Keyboard SET button and remote control both valid | |
| H00-20 | 0-15 | Monitoring parameter setting index | 7 | 7,operation times(ms):0~9000 8,Cumulative operation times:0`99999999 9,automatically operation times :0~99999999 10,Collision times:0~99999999 11,Closing in place times:0~99999999 12,Power-on time (minutes):0~99999999 13,power-on times:0~99999999 14,Input port status:Binary display 15,Error code:0~7 | |
| H00-21 | 0-3 | reset | 0 | 1:rest adjustment | |
| H00-22 | 0-1 | LED output mode | 0 | 0:Do not flash alternately during operation；1:Allow flashing |
