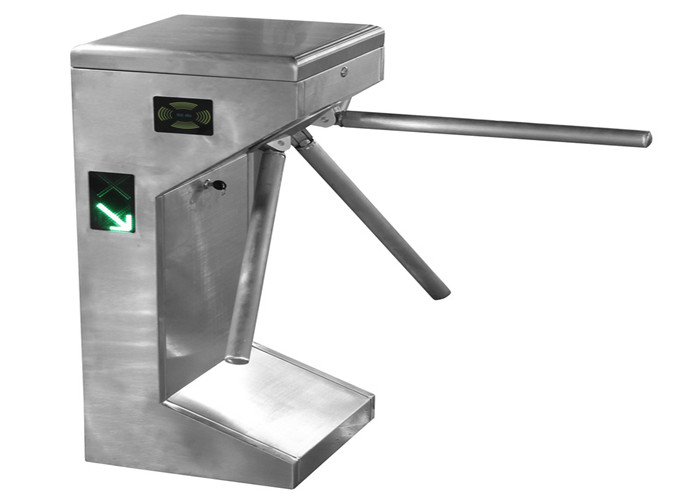

Waist Height Full Automatic Security Turnstile Gate Barrier For Access Control System

China Waist Height Full Automatic Security Turnstile Gate Barrier For Access Control System supplier
Waist Height Full Automatic Security Turnstile Gate Barrier For Access Control System supplier Waist Height Full Automatic Security Turnstile Gate Barrier For Access Control System supplier Waist Height Full Automatic Security Turnstile Gate Barrier For Access Control System supplier

Large Image :  Waist Height Full Automatic Security Turnstile Gate Barrier For Access Control System

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-TT04

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 2,000 pcs per month
Contact Now
Detailed Product Description
Power Supply: AC220±10%V 50Hz/AC110±10% 60Hz Max Flow Rate: 25 To 30 Person Per Minute
Material Of Housing: 304 Stainless Steel Application: Indoor/outdoor With Tent
Arm Length: 510mm Package: Carton Or Wooden Box

Waist Height Full Automatic Security Turnstile Gate Barrier For Access Control System



Features of Tripod Turnstile Gate:



1.All the system runs stable with little noise and no mechanical impact

2.It can self-check and alarm which will be make it convenient to use

3.Several ways of working molds can be chosen at your request

4.It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board

5.Arm falling and lifting can be controlled in far distance to satisfy the special requirement of the users and the request of fire protection

6.Arm can be lifted and fall when electricity is cut-off

7.It has the standard electrical interface which can be connected with various kinds of reader and writer equipment

8.So all the functions can be realized in one integration machine and can be controlled and managed by the computer in the far distance

9.The number of the persons who have passed by can be counted automatically which can also be displayed in LED

10.Direction indicator to tell you which direction can go or cannot

11.You can set the function with or without card-reading memory according to your requirement

12.The number of the persons who can pass by the turnstile can be set to meet the requirement of some special occasions

13.After reading the card, if the person who punched the card does not pass it within the set time, then this chance to access will be canceled, and the set time can be changed according to your request





Specifications of Tripod Turnstile Gate:



Power supply
AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption
50W
Access device input voltage
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Max flow rate
30 to 40person per minute
Arm length
500mm
Working temperature
-20°C~+60°C
Current
3A
Control circuit
DC12V
Working humidity
0~95%RH
IP level
IP44



Product dimension:



Waist Height Full Automatic Security Turnstile Gate Barrier For Access Control System



Cases of Tripod Turnstile Gate:



Waist Height Full Automatic Security Turnstile Gate Barrier For Access Control System





Why choose us:



1. Our Factory has 14 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
