OEM / ODM Intelligent Fast Speed Access Control Turnstiles With IR Sensors

Certification
Good quality Flap Barrier Gate for sales
Good quality Flap Barrier Gate for sales
You products have a nice design and competitive price,I like it very much, will give you more orders in the future !

—— Finn Nielsen in Denmark

It is my pleasure to do the business with Shenzhen Sinomatic Technology Co. Ltd, they always do the best for us.

—— Jessica Laux in Germany

I'm Online Chat Now

OEM / ODM Intelligent Fast Speed Access Control Turnstiles With IR Sensors

China OEM / ODM Intelligent Fast Speed Access Control Turnstiles With IR Sensors supplier

Large Image :  OEM / ODM Intelligent Fast Speed Access Control Turnstiles With IR Sensors

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE
Model Number: SN-FB02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Flap Opening / Closing Time: 1s Reset Time When Power On: 3s
Normal Life: 4 Million Times Material Of Case: 304 Or 316 Stainless Steel
Access Device Input Voltage: Dry Contact Or 12V Electrical Level Signal Direction: Can Be Set As Single Or Double
Flap Material: Acrylic Or PU Foam

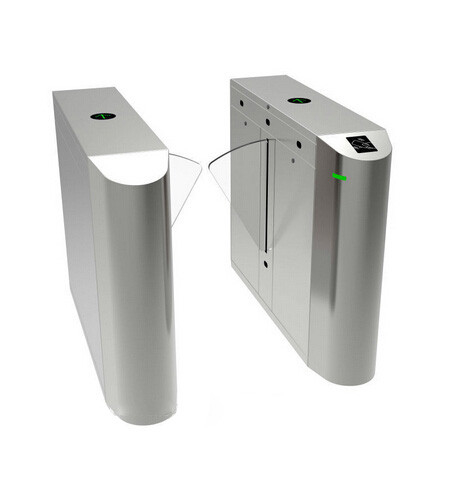

OEM / ODM Intelligent Fast Speed Access Control Turnstiles With IR Sensors



Introduction of Flap Turnstile Gate:



Sinomatic flap turnstile gates are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation, traffic lights, command console, alarm system against unauthorised entries.



Applications of Flap Turnstile Gate:



Professional flap turnstile gate is your ideal choice for entrance control and widely applied in:Community, school, bank, seabeach, shopping center and so on.





Features of Flap Turnstile Gate:



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function.



Specifications of Flap Turnstile Gate:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C



Case of Flap Turnstile Gate:



OEM / ODM Intelligent Fast Speed Access Control Turnstiles With IR Sensors



Why choose us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
