Entrance Control Stainless Steel Turnstile Small Footprint Pedestrian Turnstile
  • Entrance Control Stainless Steel Turnstile Small Footprint Pedestrian Turnstile

Entrance Control Stainless Steel Turnstile Small Footprint Pedestrian Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TT01
Product Details
Max Flow Rate:
25 To 30 Person Per Minute
Working Temperature:
-20°C~60°C
Working Humidity:
0~95%RH
Material Of Housing:
304 Or 316 Stainless Steel
Application:
Indoor/outdoor With Tent
Thickness Of Housing:
1.2mm Or 1.5mm
High Light:

controlled access turnstiles

,

turn style door

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram
Supply Ability
3,000pcs per month
Product Description

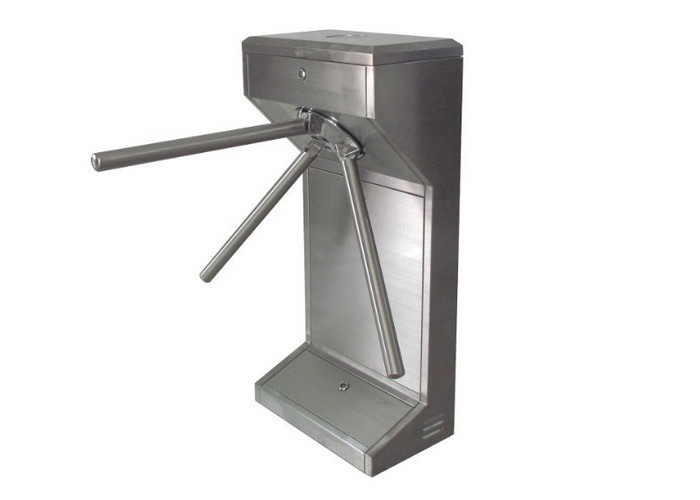

Entrance Control Stainless Steel Turnstile Small Footprint Pedestrian Turnstile



Introduction of Tripod Turnstile Gate:



304 stainless waist height tripod turnstile gate is an pure mechanical turnstiles. Its unique mechanical drive design no need any expensive electric motor. The tripod turnstile direction can be set as single direction or double direction, depends on the purpose of the access control.



Applications of Tripod Turnstile Gate:



304 stainless waist height tripod turnstile gate is suitable for many locations. They are optimized economical solution for airport, bus station, metro station, supermarket, police station, factory, colleges, commercial building etc.



Features of Tripod Turnstile Gate:

  • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
  • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
  • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
  • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
  • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
  • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



Product details of Tripod Turnstile Gate:



Entrance Control Stainless Steel Turnstile Small Footprint Pedestrian Turnstile 0



Specifications of Tripod Turnstile Gate:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Power consumption

40W

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor

No motor

Max flow rate

25 to 30 person per minute

Arm length

510mm

Working temperature

-20°C~60°C



Cases of Tripod Turnstile Gate:



Entrance Control Stainless Steel Turnstile Small Footprint Pedestrian Turnstile 1

Entrance Control Stainless Steel Turnstile Small Footprint Pedestrian Turnstile 2



Why choose us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
