Home ProductsTripod Turnstile Gate

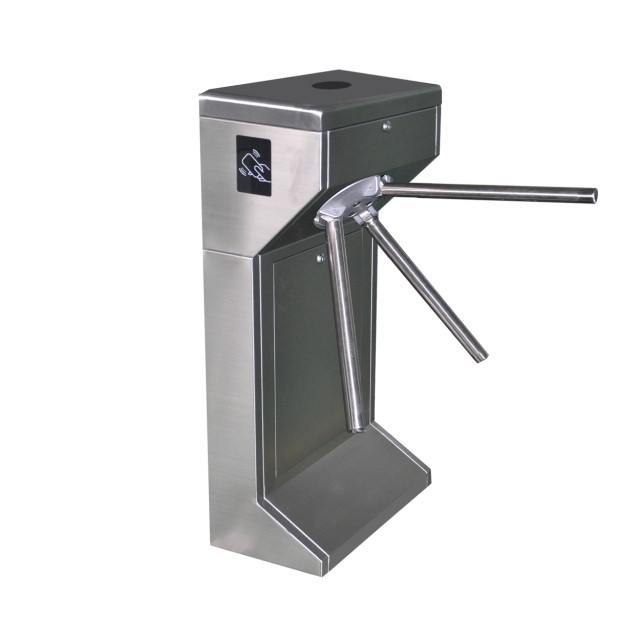

RFID Ticketing System Vertical Automatic Stainless Steel Tripod Turnstile for Tourist

RFID Ticketing System Vertical Automatic Stainless Steel Tripod Turnstile for Tourist

    • RFID Ticketing System Vertical Automatic Stainless Steel Tripod Turnstile for Tourist
  • RFID Ticketing System Vertical Automatic Stainless Steel Tripod Turnstile for Tourist

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-TT01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Arm Length: 500mm Max Flow Rate: 25 To 30 Person Per Minute
    Material Of Housing: 304 Or 316 Stainless Steel Application: Indoor/outdoor With Tent
    OEM/ODM: Yes Default Package: Wooden Box
    High Light:

    controlled access turnstiles

    ,

    stainless steel turnstile

    RFID Ticketing System Vertical Automatic Stainless Steel Tripod Turnstile for Tourist



    Introduction of Tripod Turnstile Gate:



    Safety tripod turnstile gate can be used with a variety of access control devices like IC and ID card reader, bar-code scanner, ticket system, face recognition system and so on to make it more security of certain area.



    Applications of Tripod Turnstile Gate:



    Tripod Turnstile is generally used in simple dissuasion level access control of public passages. It is widely used

    in work attendance checking systems of factories, consumption systems of public institutions, access control of

     residential estates, ticket exit systems of scenic, sports and other arenas.



    Features of Tripod Turnstile Gate:

    • Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
    • If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
    • Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
    • Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
    • Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
    • Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
    • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
    • The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



    Product details of Tripod Turnstile Gate:



    RFID Ticketing System Vertical Automatic Stainless Steel Tripod Turnstile for Tourist 0



    Specifications of Tripod Turnstile Gate:



    Item

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Power consumption

    40W

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor

    No motor

    Max flow rate

    25 to 30 person per minute

    Arm length

    510mm

    Working temperature

    -20°C~60°C



    Cases of Tripod Turnstile Gate:



    RFID Ticketing System Vertical Automatic Stainless Steel Tripod Turnstile for Tourist 1RFID Ticketing System Vertical Automatic Stainless Steel Tripod Turnstile for Tourist 2
