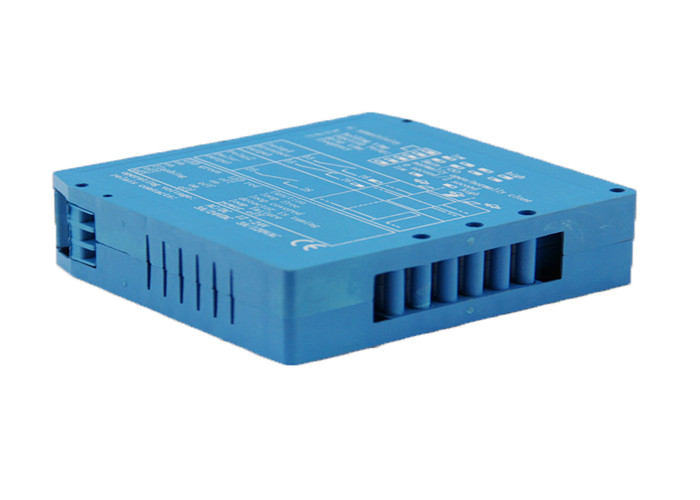

High Sensitivity Metal Inductive Loop Sensors For Parking Management System

China High Sensitivity Metal Inductive Loop Sensors For Parking Management System supplier
High Sensitivity Metal Inductive Loop Sensors For Parking Management System supplier High Sensitivity Metal Inductive Loop Sensors For Parking Management System supplier

Large Image :  High Sensitivity Metal Inductive Loop Sensors For Parking Management System

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: LD-M1H

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 2-5 working days after payment received
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 3,0000pcs per month
Contact Now
Detailed Product Description
Output: Relay Power Consumption: Less Than 5W
Loop Connection Wiring: Maximum Length 200 Meters Twisted At Least 20 Times Per Meter Operating Temperature: -30℃ To 70℃
Installation: DIN Lead Rail Sensitivity: Four Class Adjustable



High Sensitivity Metal Inductive Loop Sensors For Parking Management System



M1H Loop Detector Description:



Vehicle Loop Detector LD-M1H with direction detecting function that can be used to statistics the vehicle flux. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.



Key Features



1) When the DIP switch is on position or changing the presence output time, Self-detection

would be done ;

2) ABS align to the pillar which can combine with each other compactly ;

3) Presence output time can be adjustable ;

4) Work mode can be set by the DIP switch ;

5) Pulse output or permanent output can be adjustable .





Technical Parameters



1) Power supply:AC: 220V, 110V DC: 24V, 12V

2) Power Consumption : 3W maximum

3) Output Relay : 120V/3A AC

4) Work Temperature : -20oC ~ +70oC

5) Loop Inductance Range : 50μH ~ 800μH ( ideal 100μH ~ 300μH )

6) Work Frequency : 20kHz ~ 130kHz

7) Sensitivity : 4 levels adjustable

8) Self-calibrating : 1s to 2s

9) Dimension : 79×22.5×90mm ( L×W×H )



Product diaplay:



High Sensitivity Metal Inductive Loop Sensors For Parking Management System





Application:



High Sensitivity Metal Inductive Loop Sensors For Parking Management System
