Driveway Single Vehicle Loop Detector Safe Guarding Accessways And Counting

China Driveway Single Vehicle Loop Detector Safe Guarding Accessways And Counting supplier
Driveway Single Vehicle Loop Detector Safe Guarding Accessways And Counting supplier Driveway Single Vehicle Loop Detector Safe Guarding Accessways And Counting supplier

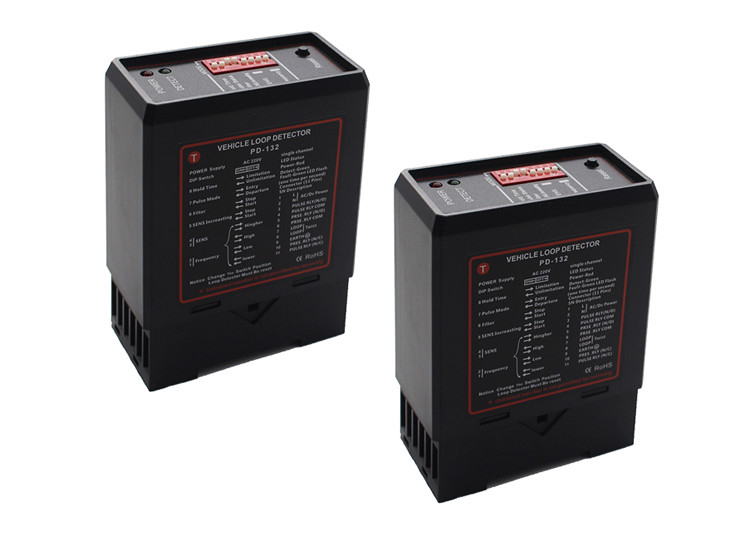

Large Image :  Driveway Single Vehicle Loop Detector Safe Guarding Accessways And Counting

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: PD-132

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 2-5 working days after payment received
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 3,0000pcs per month
Contact Now
Detailed Product Description
Model: PD-132 Reaction Time: 100ms
Output Relays: 240V/5A Warranty: 1 Year
Voltage Available: 220V, 110V, 24V, 12V Loop Connection Wiring: Maximum Length 200 Meters Twisted At Least 20 Times Per Meter

Driveway Single Vehicle Loop Detector Safe Guarding Accessways And Counting



Loop Detector Application:



Driveway Single Vehicle Loop Detector Safe Guarding Accessways And Counting





Main Features:



1) Reset Switch : The reset switch enables the detector to be manually reset during commissioning and testing . This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection ;

2) Selectable Pulse Time : This feature sets the length of time that the pulse relay will be energized for 1 Second or 0.5 Seconds ;

3) Pulse Relay Selection : The Pulse Relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop ;

4) Sensitivity Boost : This feature sets the undetect level to maximum sensitivity and is used to prevent loss of detection of high-bed vehicles ;

5) Switch Selectable Sensibility : 4 sensitivity setting are available on the switches to allow flexibility in configuration ;

6) Switch Selectable Frequency : 4 frequency settings are available to prevent cross-talk between adjacent loops ;

7) Filter Option : This option is used to provide a delay between detection of the vehicle and switchiing of the output relay . This relay is normally used to prevent false detection of small or fast moving objects ;

8) Permanent Presence Option : This feature ensure detection of the vehicle will be maintained when the vehicle is parked over the loop for extended periods .



Technical parameters of Loop Detector



Supply voltage

 230V AC , 115V AC,24VDC/AC,12V DC/AC

Voltage tolerance AC
+10% / -15%
Voltage tolerance DC
±15%
Power Consumption
4.5VA
Output relays
240V/5A
Operating temperature
-20°C to +65°C
Storage temperature
-40°C to +85°C
Frequency range
20 kHz to 170 kHz
Reaction time
100ms
Signal holding time
Unlimited
Sensitivity
Adjustable in 3 increments
Loop inductance
Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH
Loop connection wiring
Maximum length 20 meters, twisted at least 20 times per meter
Size of Housing
78x40x108 mm (L x W x H)





Product show:



Driveway Single Vehicle Loop Detector Safe Guarding Accessways And Counting



Why Choose Us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
