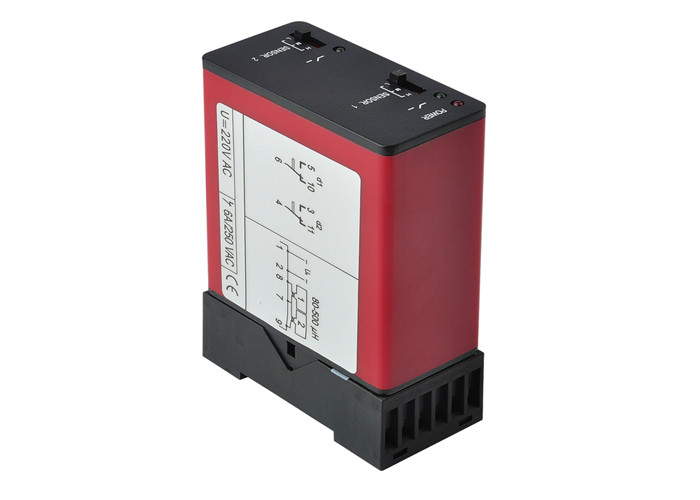

Dual Way Vehicle Loop Detector Matching Traffic Barrier Gate

Dual Way Vehicle Loop Detector Matching Traffic Barrier Gate

Loop Detector Application:

♦ Toll gate for high way

♦ Parking lot entrances vehicle detection

♦ Parking lot space information acquisition system

♦ Electronic police traffic lights snap shot system

♦ Traffic monitoring system

Features:

1. High temperature stability, used in kinds of environment

2. Environment drifting compensate automatically

3. Multilevel lightning protection

4. With function of sensing loop malfunction automatically (disconnection or cutting-out)

5. Cooperate with barrier gate to realize vehicle anti-hit and automatic close function

6. Detect the vehicles driving direction with two loops

Technical parameters of Loop Detector

Supply voltage AC: 220V, 110V DC: 24V, 12V

Sensitivity: adjustable in 3 increments (high .medium. low)

Operating temperature: -20°C to +70°C

Storage temperature: -40°C to +85°C

Frequency range: 20 kHz to 170 kHz

Reaction time: 100ms

Loop inductance: Ideal:80μH to 300μH

(incl. conn. wiring) : max:50μH to 500μH

Loop connection: <5m optimal

Loop connection wiring: Maximum length 200 meters, Twisted at least 20 times per meter

Dimensions: 74 x36x85 mm (WxHxL)

Net Weight: 300g

More Photo:

Payment:

1.Payment: T/T,Western Union ,30% deposit before production,70% balance paid before delivery

2.Shipping freight are quoted based on your requests

3.Discounts are offered based on order quantities
