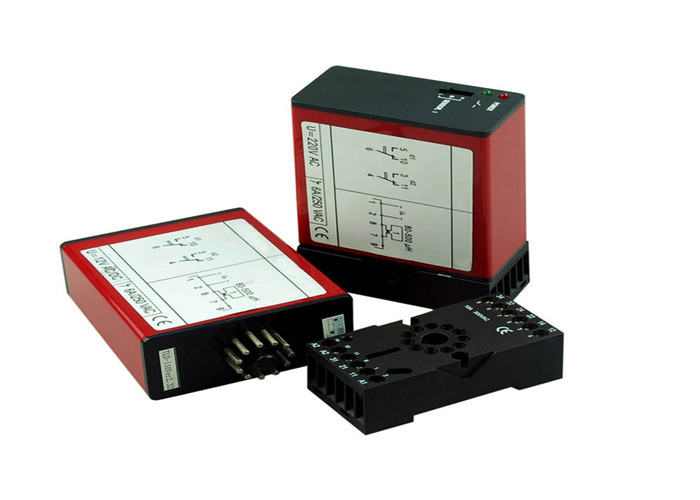

Toll Gate Vehicle Loop Detector Action Relay Output 220v / 110v 24v / 12v

Toll Gate Vehicle Loop Detector Action Relay Output 220v / 110v 24v / 12v

Loop Detector Application Scope:

♦ Parking lot entrances vehicle detection
♦ Parking lot space information acquisition system
♦ Electronic police traffic lights snap shot system
♦ Traffic monitoring system

Function $ Features

The LD-110 is a single channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.

Technical parameters of Loop Detector

1. Operation Voltage: AC 220V± 10%
2. Power consumption: 5W
3. Output: Relay output
4. Frequency range: 20 kHz~170 kHz (2 grades adjustable)
5. Reaction time: 10ms
6. Signal hold time: Unlimited/limited existence for 10 minutes when loop is temporarily covered
7. Sensitivity adjusting: 8 grades
8. Loop inductance: Ideal 100uH~300uH (include connecting wiring) Max 50uH~1000uH (include connecting wiring)
9. Loon connection wiring: Recommend down-lead not more than 10 meters, twist 20 times at least per meter for the loop, total resistance ≤ 10 Ohm
10. Automatic calibration time: 1s~2s
11. Operation temperature: -20~65
12. Storage temperature: -40~85
13. Relative humidity: ≤ 95%
14. Dimensions: 78*40*108mm (include base socket)
15. Weight: 300g (include base socket)

More Photo:

Our advantage

1. Low MOQ: sample is available for checking our quality first conveniently.
2. Good Quality: You can get good reputation from your market and obtain more orders.
3. Good Service: Offer professional service before and after sale.
4. Reasonable price
5. Fast & Cheap Delivery
6. OEM is welcome.
