Automatic Solar Powered parking space locking device CE ROSH Certificates

Certification
Good quality Flap Barrier Gate for sales
Good quality Flap Barrier Gate for sales
You products have a nice design and competitive price,I like it very much, will give you more orders in the future !

—— Finn Nielsen in Denmark

It is my pleasure to do the business with Shenzhen Sinomatic Technology Co. Ltd, they always do the best for us.

—— Jessica Laux in Germany

I'm Online Chat Now

Automatic Solar Powered parking space locking device CE ROSH Certificates

China Automatic Solar Powered parking space locking device CE ROSH Certificates supplier
Automatic Solar Powered parking space locking device CE ROSH Certificates supplier Automatic Solar Powered parking space locking device CE ROSH Certificates supplier

Large Image :  Automatic Solar Powered parking space locking device CE ROSH Certificates

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-EL

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 120 to 150 /set
Packaging Details: CARTON/WOODEN
Delivery Time: 3-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, , L/C, D/A, D/P
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Battery Voltage: DC6V, 7Ah Static Current: 3.5MA
Working Current: 3.5A Running Time: 6S
Size: 460*460*80mm Power: Solar + Battery



Automatic Solar Powered parking space locking device CE ROSH Certificates



Introduction of parking space lock:



  • Car Parking Lock is an iron mechanical device which can avoid parking place being occupied by others.
  • Car Parking Lock is installed on flat cement floor. And it is generally installed in 1/3 entrance of parking space.



Technical parameters of solar type parking lock:



RATED VOLTAGE

DC6V

WORKING CURRENT

3.5A

RUNNING TIME

6s rising and 6s lowering

AFTER RISING ALTITUDE

420mm

AFTER DROPPING ALTITUDE

75mm

REMOTE CONTROLLED DISTANCE

≤15m

ENVIRONMENT TEMPERATURE

-20℃~+55℃

SIZE OF SOLAR ENERGY PANEL

130×60×4.3mm

DIMENSIONS

460×460×75mm

NET WEIGHT

 8kg



 BATTERY ALARM INSTRUCTION



  • The battery shall be recharged before using the parking lock. The recharging time shall be
  • controlled within 10 hours. The indicate light will turn green from red if the battery is fully charged.
  • During the application, if the terminal voltage of the battery is lower than 6.2V (the working speed
  • of the parking lock is lower than usual). Recharge the battery in case that the parking lock can not  work normally.
  • Do not try to dissemble the battery to avoid any danger; do not clean the battery with chemical  water; if the battery shell is broken and sculpture acid touches the skin, rinse immediately with clean  water.

APPLICATION INSTRUCTION

  • Press the remote button to lift or decline the parking lock rocker. Power-off protection will be made  if the rocker is blocked to prevent the electrical motor from being damaged.
  • If the remote is out of service or the battery storage is low, lifting/lowering of the parking lock can be  made with manual.

Application of car parking lock:



Automatic Solar Powered parking space locking device CE ROSH CertificatesAutomatic Solar Powered parking space locking device CE ROSH Certificates

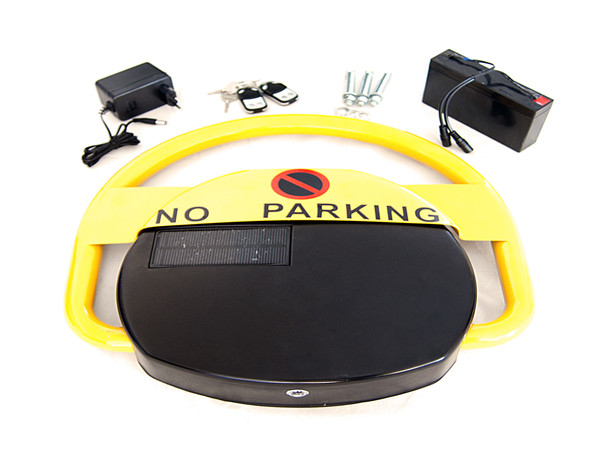

Packing list:



S/N

NAME

QUANTITY

1

Parking lock

1PC

2

Charger

1PC

3

Remote control

2PCS

4

Key

2PCS

5

Battery

1PC

6

Expansion Steel Bolt

3PCS

7

Foundation Spacer

3PCS

8

Operation Instruction

1PC
