Security Access Control Turnstiles , Metro / Supermarket Pedestrian Turnstile

China Security Access Control Turnstiles , Metro / Supermarket Pedestrian Turnstile supplier

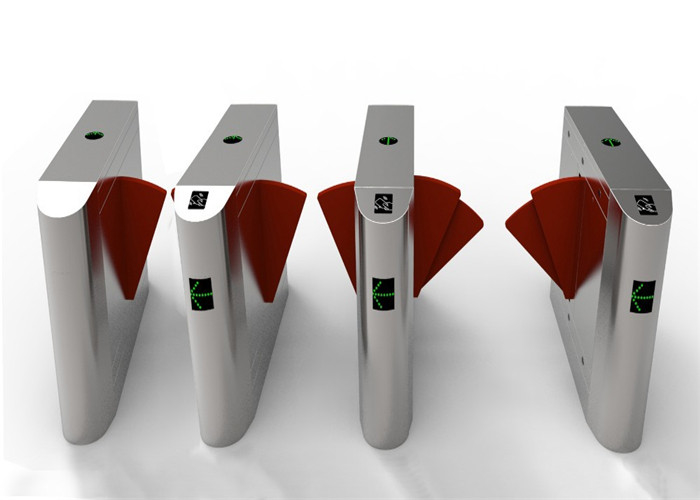

Large Image :  Security Access Control Turnstiles , Metro / Supermarket Pedestrian Turnstile

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-FB02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Flow Rate: 25 To 30 Person One Min. Working Temperature: -20°C~60°C
Material Of Case: 304 Or 316 Stainless Steel Access Device Input Voltage: Dry Contact Or 12V Electrical Level Signal
Normal Life: 5 Million Cycles Reset Time When Power On: 3s

Metro station access control system fingerprint scanner stainless steel security gates with alarm photocell



Introduction of security gates



  • being able to program running status by the small keyboard in the main board
  • Preventing pedestrians from being nipped and from hurt
  • Flaps are automatically locked until opening signal is received



Applications of security gates



Sinomatic security gates are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control.



Features of security gates



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function.



Specifications of security gates



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C



Case of security gates



Security Access Control Turnstiles , Metro / Supermarket Pedestrian Turnstile
