Full Automatic 316 Stainless Steel Turnstile With Single / Bi-Direction

Full Automatic 316 Stainless Steel Turnstile With Single / Bi-Direction

    • Full Automatic 316 Stainless Steel Turnstile With Single / Bi-Direction
  • Full Automatic 316 Stainless Steel Turnstile With Single / Bi-Direction

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-FB01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union, D/A, L/C, D/P, MoneyGram
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Passages: Multi Passage Flow Rate: 25 To 30 Person One Minute
    Surface Treatment: Wire Drawing Direction: Can Be Set As Single Or Double
    Application: Indoor/ Outdoor With Tent Drive Motor: DC 24V Brushless
    High Light:

    speedgate turnstile

    ,

    pedestrian turnstile

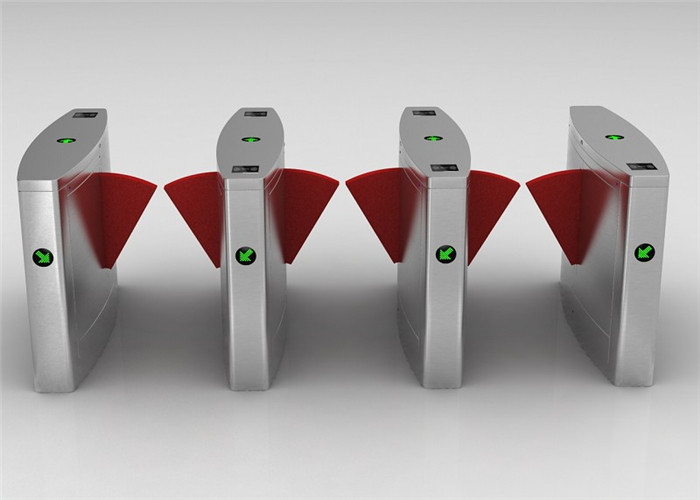

    Full automatic  flow control 316 stainless steel LED lamp speed gate for multi passages



    Introduction of speed gate



    • Heavy duty DC brush motor, highly integrated mechanism.
    • Sufficient infrared sensors for protection, anti-intrusion and anti-tailgating.
    • Compatible with other access control system.
    • Convenient installation and maintenance.

    Applications of speed gate



    Sinomatic full automatic speed gate are widely used in the following sites:

    1. Government buildings

    2. Business buildings

    3. Educational buildings

    4. Office buildings

    5. Gym/Stadium

    6. Factory buildings



    Features of speed gate:



    1. Fault detection and alarm functions, easy to use and maintenance.

    2. The running status can be programmed and controlled with the built-in keyboard on the main board.

    3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

    4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

    5. Synchronization functions (for dual gate equipment).

    6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

    7. Gate can be set as normally open or normally closed.

    8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

    9. Direction can be set as single-direction or bi-direction.

    10. LED direction indicator.

    11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

    12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

    13. Counter function (optional).

    14. Support infrared photocell for anti-pinch and reset function.



    Specifications of speed gate:



    Item

    Specification

    Power supply

    AC220±10%V 50Hz/AC110±10% 60Hz

    Access device input voltage

    Dry contact or 12V electrical level signal

    or > 100ms 12V impulse signal, driving current > 10mA

    Motor voltage

    DC 24V (brush motor)

    Max flow rate

    25 to 30 person per minute

    Flap opening / closing time

    1s

    Reset time when power on

    3s

    Working temperature

    -20°C~60°C



    Case of speed gate



    Full Automatic 316 Stainless Steel Turnstile With Single / Bi-Direction 0



    Why choose us:



    1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
