Indoor / Outdoor Security Speed Gates Bank / Stadium Turnstile Door
  • Indoor / Outdoor Security Speed Gates Bank / Stadium Turnstile Door

Indoor / Outdoor Security Speed Gates Bank / Stadium Turnstile Door

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-FB01
Product Details
Product Type:
Speed Gates
OEM/ODM:
Supported
Application:
Indoor/outdoor With Tent
Warranty:
1 Year
Material Of Housing:
304 Or 316 Stainless Steel
Max Flow Rate:
25 To 30 Person Per Minute
High Light:

speedgate turnstile

,

pedestrian turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union, L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description

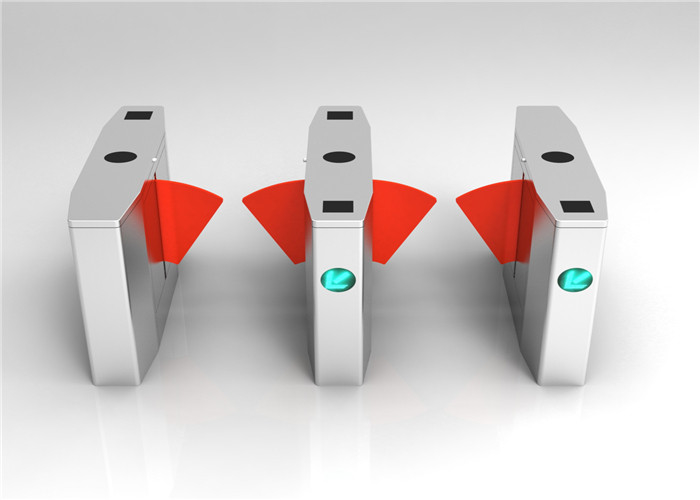

Pedestrian Control Auto Retractable Speed Gates With 304 Stainless Steel Cabinet



Introduction of Retractable Speed Gates:



Whereas the speed gate is a high-end access control barrier that meets the strict requirements of large corporate buildings, it is simpler, offering a strict level of security with beautiful design. The speed gate can be a support to the security guards and receptionists in keeping track of the visitors and staff entering a building, ensuring only authorised users can enter certain areas.



Applications of Retractable Speed Gates:



Flap barrier gate is suitable for indoor or outdoor with tent. They are optimized economical solution for railway, bus station, factory, colleges, commercial building, library, stadium, hotel, bank and etc.



Features of Retractable Speed Gates:



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function.



Specifications of Retractable Speed Gates:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C



Case of Retractable Speed Gates:



Indoor / Outdoor Security Speed Gates Bank / Stadium Turnstile Door 0



Our advantages:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
