High security K12 stainless steel hydraulic retractable traffic safety road blocker with spikes

Certification
Good quality Flap Barrier Gate for sales
Good quality Flap Barrier Gate for sales
You products have a nice design and competitive price,I like it very much, will give you more orders in the future !

—— Finn Nielsen in Denmark

It is my pleasure to do the business with Shenzhen Sinomatic Technology Co. Ltd, they always do the best for us.

—— Jessica Laux in Germany

I'm Online Chat Now

High security K12 stainless steel hydraulic retractable traffic safety road blocker with spikes

China High security K12 stainless steel hydraulic retractable traffic safety road blocker with spikes supplier
High security K12 stainless steel hydraulic retractable traffic safety road blocker with spikes supplier High security K12 stainless steel hydraulic retractable traffic safety road blocker with spikes supplier

Large Image :  High security K12 stainless steel hydraulic retractable traffic safety road blocker with spikes

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-HRB02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Drive Unit: Electro-hydraulic System Power: 1.5KW/2.2KW/3.7KW
Blocker Height: Default 760mm Min. Loading: 70T
Rising Time: 3s To 5s Package: Wooden Box

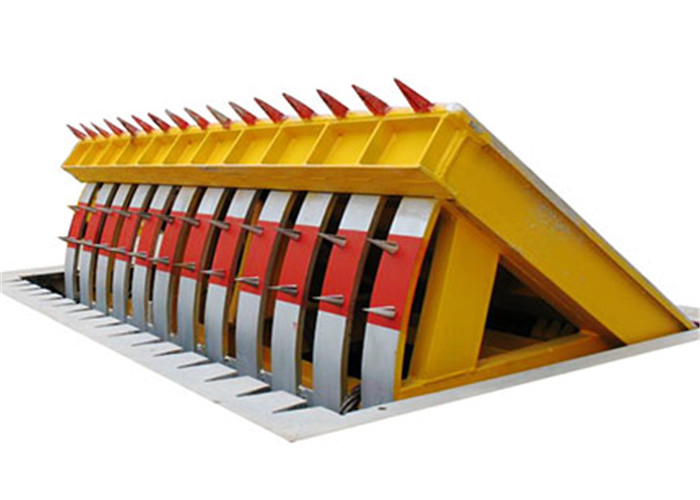

High security K12 stainless steel hydraulic retractable traffic safety road blocker with spikes



Introduction of hydraulic road blocker:



Road blockers are designed especially for entrance points which have a threat of vehicle attack or for the ones that have high security requirements. If there is a threat of vehicle attack in addition to the control of vehicle access in high security applications, hydraulic road blockers are the unique solution and the most secure systems. Even though the attack is from high tonnage vehicles with high speeds, it's not possible for the vehicle to keep on moving because of the damage given to front, wheels and the bottom of the vehicle. Sinomatic road blockers are designed to K12 standards. Finite element model analyses are available upon request. Drive unit is electro-hydraulic, but in case of power failure road blocker can be lowered or lifted manually with the help of hand pump. Typical raise/lower time is 3 seconds.  With the help of PLC (programmable logic control), raise/lower function can be achieved by every kind of card readers, biometric readers like fingerprint or hand shape, radio control, on/off key switch etc. Besides, safety accessories like photocells, inductive loop detectors, flashing lights or red/green traffic lights can be integrated to the system very easily. Typical weight of a road blocker is 2-2.5 tons (depending on road blocker type).



Features of hydraulic road blocker:

  • Strong and durable structure, high load bearing, movement smooth, low noise, fast speed, long service life.
  • Adopting PLC control, system operation is stable and performance is reliable., easy to integrate
  • Supporting the gang control with parking barrier or other equipment. It can also work with other access control system.
  • Adopting the advanced hydraulic drive technology. The whole system is high security, reliability, and stability.
  • Manual hydraulic system meet the requirement of fire management (In case of power failure or malfunction)
  • Remote control device: Through wireless remote control, it can control the rising and falling of road blocker within distance of 30 meters
  • Convenient to maintain:  in the case of structural failure or machine maintenance, you can loose the screw on the cover and take off the 16mm cover plate for corresponding operation.



Specifications of hydraulic road blocker:



Control system

electric hydraulic control

Voltage

380V( control voltage:24V)

System Power

1.5KW/2.2KW/3.7KW

Min. loading

70T

Rising time

3 ~ 5 s

Falling time

3 ~ 5 s

Rising Height

350-800mm

Working temperature

-20℃~75℃.





Cases of hydraulic road blocker:



High security K12 stainless steel hydraulic retractable traffic safety road blocker with spikes





Why choose us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
