Heavy Duty IP68 Dia 324mm Automatic Rising Bollards For Hospitals / Airports

China Heavy Duty IP68 Dia 324mm Automatic Rising Bollards For Hospitals / Airports supplier

Large Image :  Heavy Duty IP68 Dia 324mm Automatic Rising Bollards For Hospitals / Airports

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-HRB01

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Size: Custom Made Package: Wooden Box
Material Of Bollard: 304 Or 316 Stainless Steel Working temperature: -35℃~75℃.
Protection grade: IP68  Anti-collision level: K12
Application: Indoor Or Outdoor Bollard Thickness: 6 mm (6 to 12 mm Are Available)

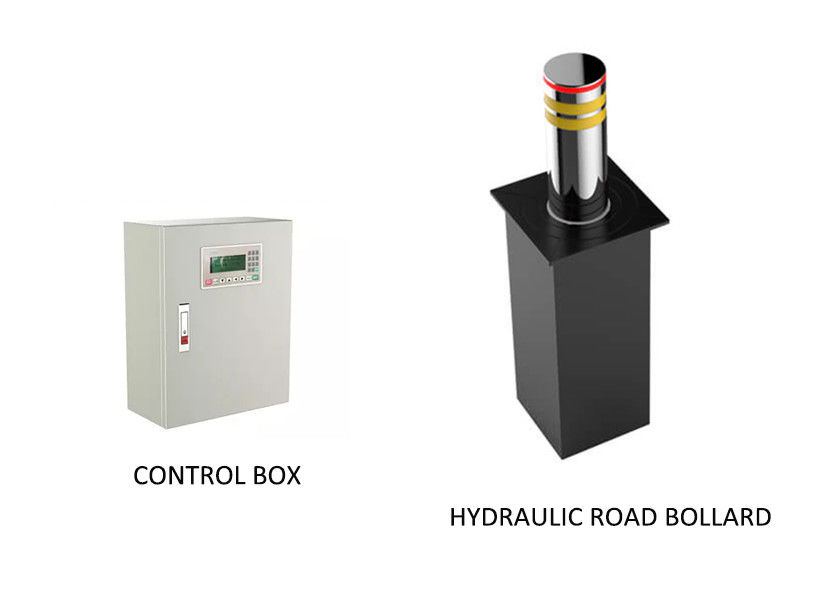

IP68 324mm diameter hydraulic automatic rising traffic safety road bollard for access control system



Introduction of safety road bollard:

  • Electro-hydraulic-mechanically control
  • 304# or 316# Stainless steel
  • Speedy and heavy duty
  • One year warranty



Applications of  safety road bollard:



The system is designed to withstand impacts and still operate, giving high security levels to all sites. It is ideal for

 university campuses, pedestrian walkways, parking lots, government buildings, sports stadiums, amusement

parks, airports, shopping centers, hospitals and apartment complexes etc.





Features of  safety road bollard:



1. Steady and safe due to the OMRON PLC control system

2. Speedy and durable due to the use of hydraulic pressure

3. Can low down the bollards by handle valve in case of power failure or fault of automatic system

4. Can raise up the bollards by handle pump in case of power failure or fault of automatic system

5. Bollard is made of 304 or 316 stainless steel

6. Optimization of frame structure, high anti-impact capability, high loading capability

7. Protecting key avoids mis-operation



Specifications of  safety road bollard:



Bollard Material

304 or 316 stainless steel

Bollard height

400 to 1000mm

Bollard diameter

168 mm (219mm, 273 mm, 324mm are available)

Bollard thickness

6 mm (6 to 12 mm are available)

Min. loading

70T

Anti-collision level

K6 to K12

Protection grade

IP68

System dynamic power

2.2 KW / 380V

Rising time

3 ~ 6 s

Falling time

3 ~ 6 s

Operation mode

Electromechanical

Working temperature

-35℃~75℃.





Cases of  safety road bollard:



Heavy Duty IP68 Dia 324mm Automatic Rising Bollards For Hospitals / Airports



Why choose us:



1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
