Hydraulic Lifting Automatic Parking Bollards Access Control System For Prison

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-HRB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-7 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability 1000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
System dynamic power  2.2 KW / 380V Bollard Height Default 600mm
Bollard Thickness Default 6mm Min. Loading 70T
Rising Time 3s To 6s Working temperature -35℃~75℃.
High Light

automatic retractable bollards

,

automatic driveway bollards

Leave a Message
Product Description

Access control system 316 stainless steel hydraulic lifting automatic rising bollard for Prison



Introduction of automatic rising bollard:



  • High security and anti-collision ability
  • Good quality hydraulic unit which is built in bollard could provide large power safely for a long time.
  • Automatic fall/rise in the case of outage (optional)



Applications of automatic rising bollard:



The system is designed to bring desired environmental and aesthetic enhancements to perimeter security, securing perimeter access without providing a sense of social disorder and active alarm measures. The system is designed to withstand impacts and still operate, giving high security levels to all sites. It is ideal for university campuses, pedestrian walkways, parking lots, government buildings,  sports stadiums, amusement parks, airports, shopping centers, hospitals and apartment complexes etc.





Features of automatic rising bollard



1. Steady and safe due to the OMRON PLC control system

2. Speedy and durable due to the use of hydraulic pressure

3. Can low down the bollards by handle valve in case of power failure or fault of automatic system

4. Can raise up the bollards by handle pump in case of power failure or fault of automatic system

5. Bollard is made of 304 or 316 stainless steel

6. Optimization of frame structure, high anti-impact capability, high loading capability

7. Protecting key avoids mis-operation



Specifications of automatic rising bollard:



Bollard Material

304 or 316 stainless steel

Bollard height

400 to 1000mm

Bollard diameter

168 mm (219mm, 273 mm, 324mm are available)

Bollard thickness

6 mm (6 to 12 mm are available)

Min. loading

70T

Anti-collision level

K6 to K12

Protection grade

IP68

System dynamic power

2.2 KW / 380V

Rising time

3 ~ 6 s

Falling time

3 ~ 6 s

Operation mode

Electromechanical

Working temperature

-35℃~75℃.

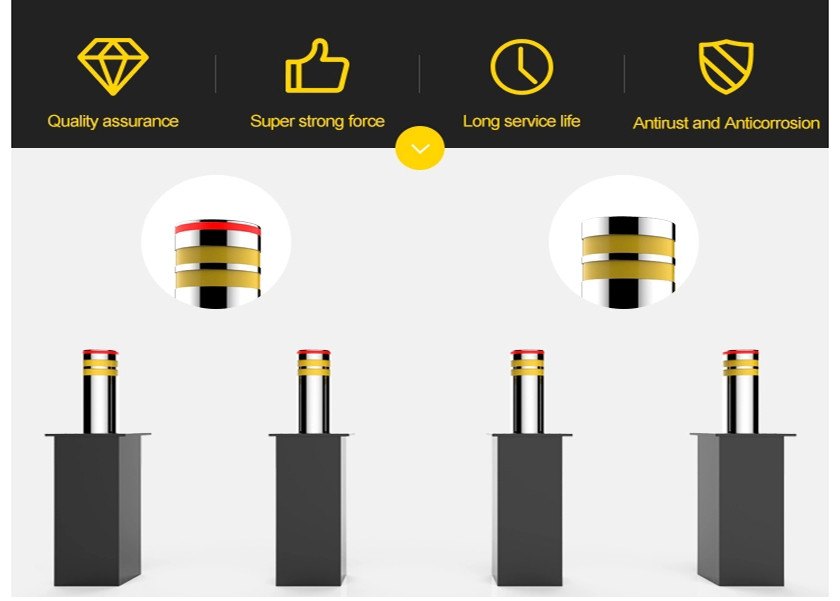

Cases of automatic rising bollard:



Hydraulic Lifting Automatic Parking Bollards Access Control System For Prison 0
