Automatic Waterproof Remote Control Parking Lock With Lead - Acid Battery

Automatic Waterproof Remote Control Parking Lock With Lead - Acid Battery

    • Automatic Waterproof Remote Control Parking Lock With Lead - Acid Battery
    • Automatic Waterproof Remote Control Parking Lock With Lead - Acid Battery
  • Automatic Waterproof Remote Control Parking Lock With Lead - Acid Battery

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-BW-11

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 3-7 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Battery: DC6V, 7Ah Material: 2mm Steel Rolling
    Warranty: 1 Year OEM/ODM: Supported
    Size: 460*460*430mm Water Proof: Yes

    Parking guidance system automatic remote control car parking space protector with lead-acid battery



    Applications car parking lock:



    Car parking lock has been installed in the following types of applications: Office buildings, residence condominiums, hospitals, airports, shopping centers, stores, school, university, supermarket individual user and etc.



    Introduction of car parking lock:



    Car Parking Lock is designed to provide parking for the general public, as well as for drivers
    with special privileges and needs. These include spaces reserved for monthly, annual renters,
    owners, renters of condominium, co-op parking spaces, disabled drivers and company executives
    and visitors. In dedicated parking garages, access to the entire garage or to a designated area
    within it can be restricted using a single access controlled barrier. In a mixed-use application,
    however, access needs to be controlled on an individual parking space basis.





    Features of car parking lock:



    Easy to Install

    Fix parking lock onto the ground by expansion bolts, that is all!



    Easy to Use

    Touch the remoter to lower your automatic parking lock to lay flat, then drive your vehicle into parking space;

    When leaving, touch the remote, and your parking lock will automatically rise up to prevent anyone else from

    using your parking space.



    Heavy Duty and Durable

    The housing adopts high quality steel rolling which can bear Max. 5 ton weight. With spray plastic coating, the

    housing is waterproof, rustproof and dust-proof enough to last about 5 years in hard weather. The sway arm

    made of steel rolling won`t deform even it is crushed by a vehicle.



    Burglar-proof for safety

    The expansion bolts are placed inside the housing of parking lock, can`t be removed without a key of the

    housing. In case someone tries to remove it without permission, the parking lock will alarm loudly to remind its

    owner and also scares the thief.



    Auto-re-position

    In case a vehicle hit the parking lock from its front side, the sway arm will be forced to close down with alarm

    sound, and once the vehicle left the sway arm will automatically raise up till vertical. With the remoter, you can

     even hold position of sway arm when it was hit by a vehicle.



    180/90 Degree Anti-collision (Available for some models)

    In case a vehicle hit the parking lock from its front side, the sway arm will be forced to close down with alarm

    sound, this will protect both vehicle and the parking lock.



    Anti-disconnecting for Power Safety

    The power connection is anti-disconnecting design in case the use misplace the battery causing short circuit



    Noise-free

    The transmission design on motor makes almost zero noise, which is good for battery and motor longevity and

    less friction, also goods for quiet environment.



    Manual control in case of no power

    In case the power is off, just manually control the parking lock in emergency.



    Alarm Against a Low Battery

    If the battery is low, the parking lock will alarm to remind the owner to recharge the battery.

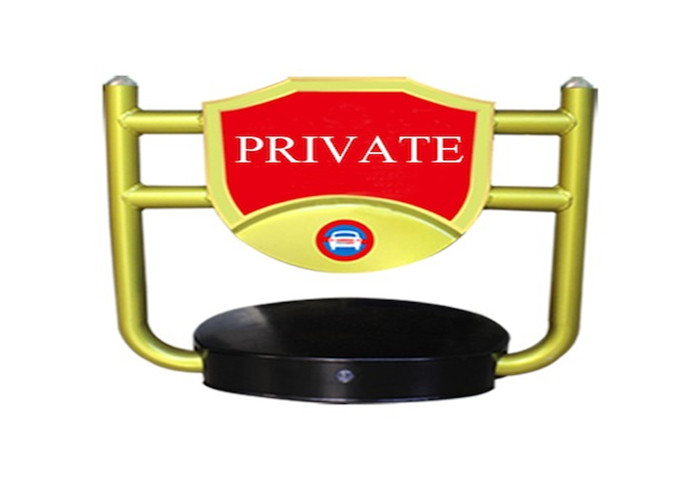

    More photo car parking lock:



    Automatic Waterproof Remote Control Parking Lock With Lead - Acid Battery



    Specifications of car parking lock:



    Model SN-BW-11
    power voltage DC6V 7AH
    Input voltage(V) DC6V  AC110/220V
    working power DC6V
    Quiescent current(mA) ≤0.85Ah
    Material steel rolling
    Size  460*460*430mm
    Up hight 430mm
    Down hight 60mm
    Up and down time 5-6s
    Remote control distance ≤50
    Working temperature   -30 ~ +65
     Lead Acid Battery charging time
    Working time after battery charging 2- 3 months
    Waterproof Incomplete waterproof
    N/W 8.2Kgs
    Packing 480*480*100mm



    Why choose us:



    1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
    2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
    3. We accept OEM/ODM orders to meet the requirements of clients.
    4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

    5. Online technical support makes it carefree to be our business partner.

    6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

    7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
